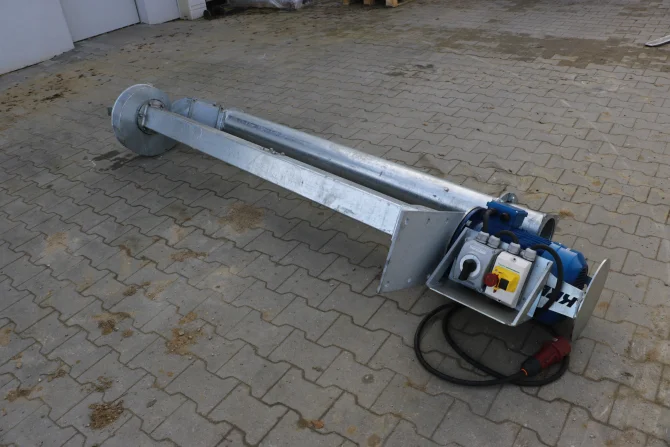

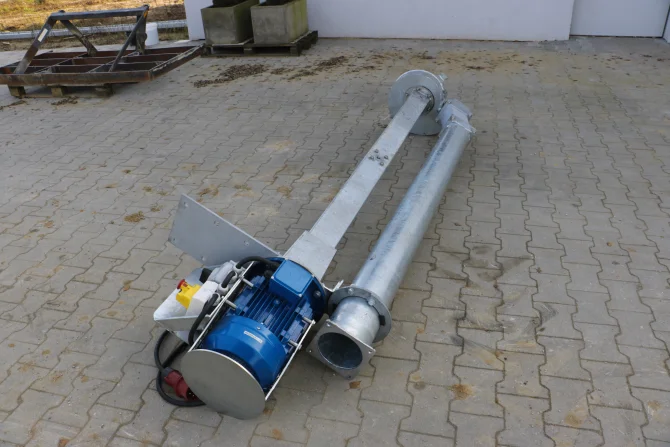

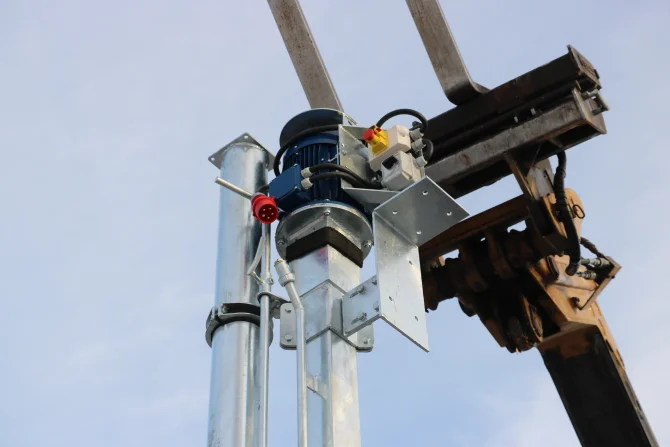

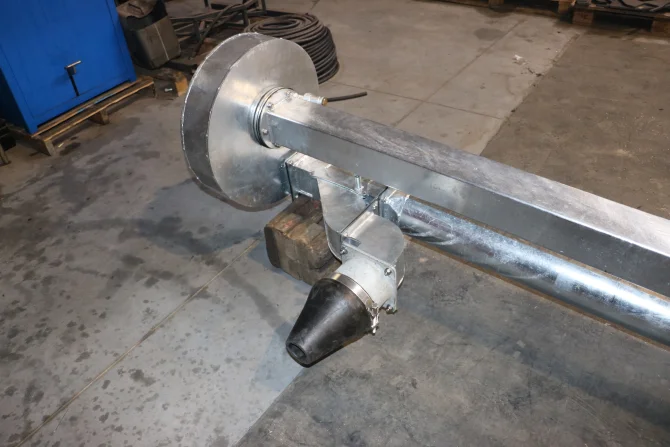

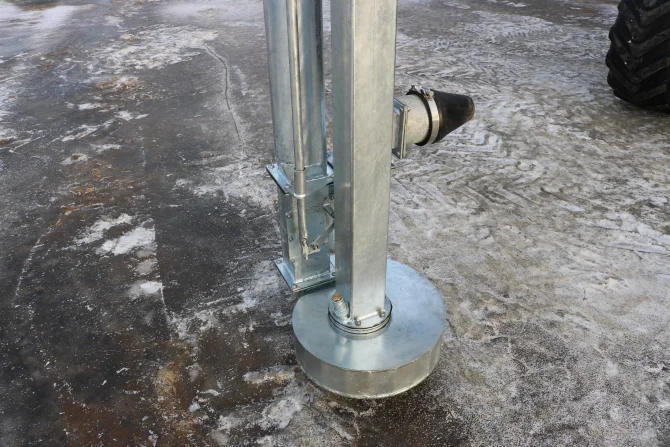

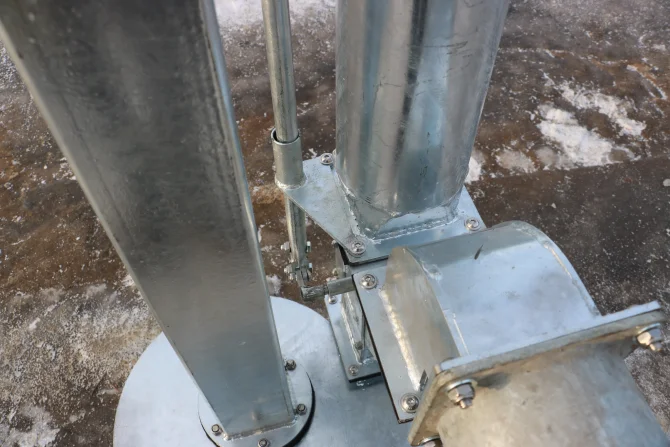

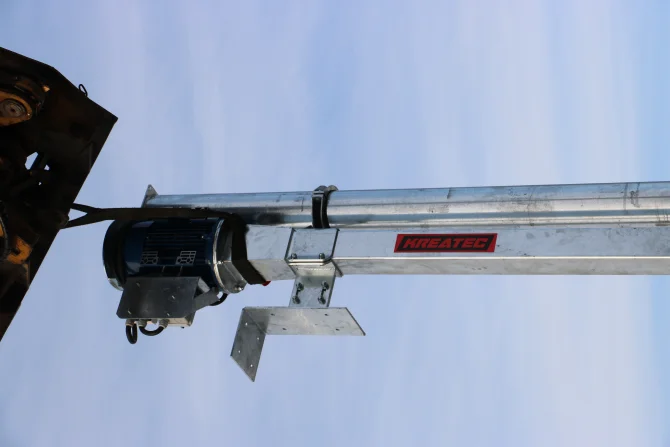

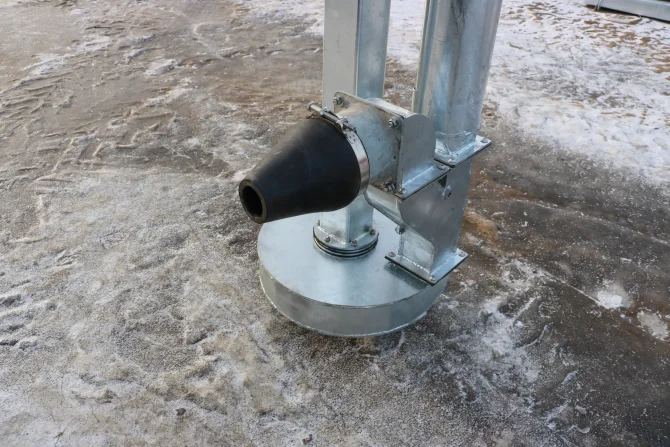

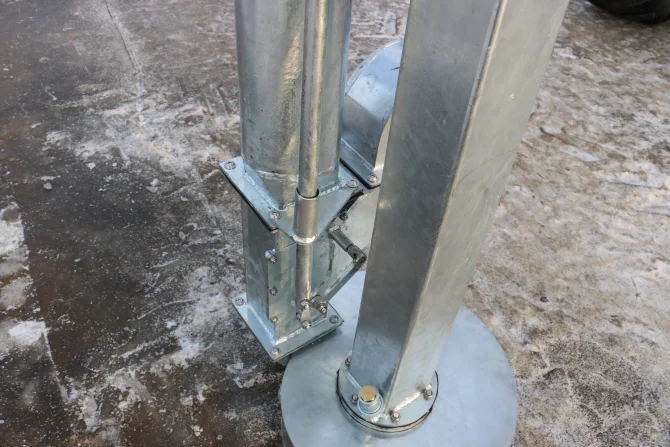

Slurry pump KR-PUMP

Slurry Pump – robust construction, high performance, and reliability A professional manure pump designed for intensive operation in agricultural farms.

Get a Quote

Detailed Description

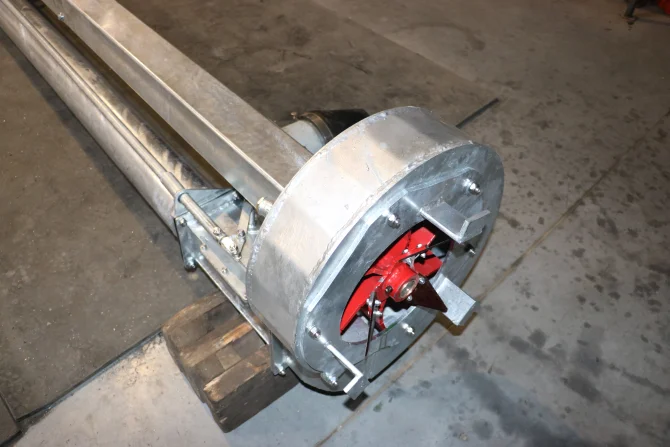

Slurry Pump – robust construction, high performance, and reliability A professional manure pump designed for intensive operation in agricultural farms. The unit combines a durable construction, high resistance to wear, and ease of operation and maintenance. It is ideally suited for mixing, pumping, and shredding slurry and other liquids with a high solids content. Key product advantages: - Hot-dip galvanized construction – effective corrosion protection and long service life. - High-quality bearing system – a ball bearing on the tractor side and roller bearings on the impeller side, operating in an oil bath. - Mechanical seal with a ceramic surface – increased tightness and resistance to aggressive media. - Powder-coated impeller and wear-resistant intermediate bushings. - 3 replaceable cutting knives – efficient shredding of solid fractions. - Easy-to-dismantle design – quick servicing and maintenance. - Made of high-strength steel – reliable operation even in demanding working conditions. Applications The pump is designed for: -mixing slurry in tanks, -pumping high-density liquids, -operation in agricultural farms, livestock facilities, and biogas plants.

Standard Equipment:

  • Hot-dip galvanized construction,
  • Ball bearing on the tractor side,
  • Roller bearings on the rotor side, operating in an oil bath,
  • Mechanical seal with a ceramic surface,
  • Powder-coated rotor,
  • Wear-resistant intermediate bushings,
  • Easy-to-dismantle design for service purposes,

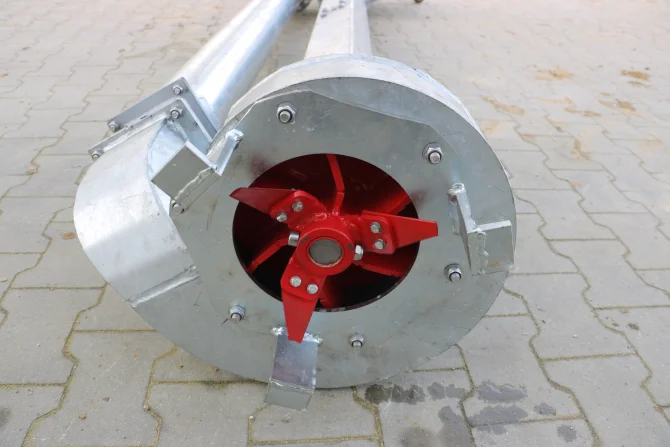

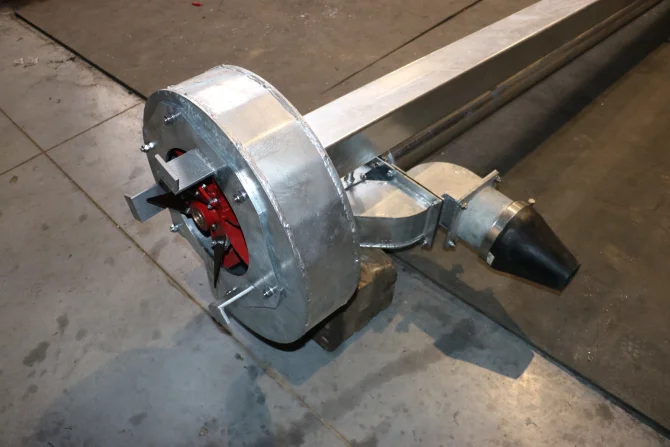

  • 3 replaceable cutting blades,
  • 3 support legs,

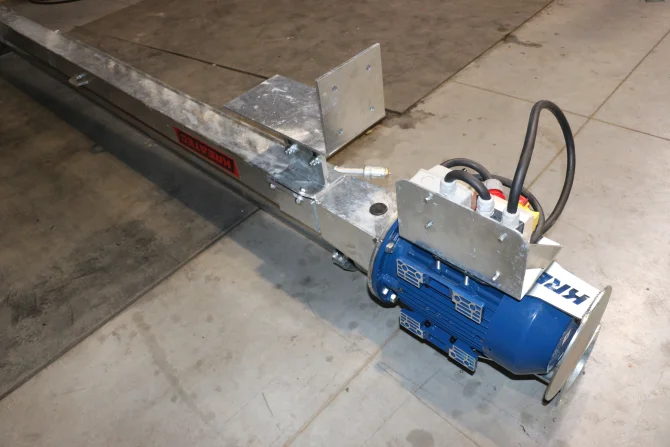

  • Electric motor cover,

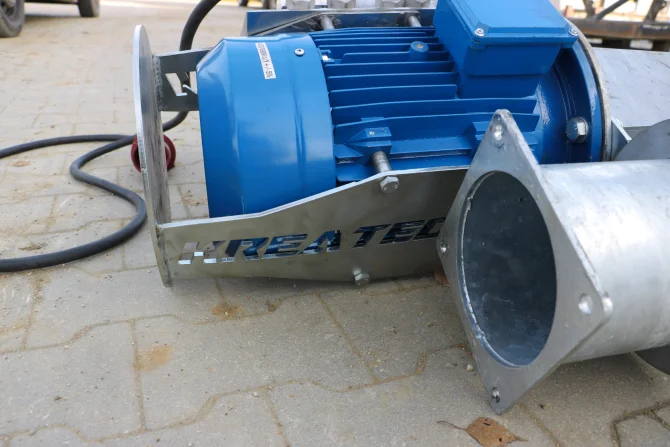

  • 400 V electric motor,
  • Manufactured from high-strength steel S355,
  • PTO shaft required between the tractor and the pump for the PTO-driven version: 830 Nm with shear bolt clutch, length 1.2 m, 1 3/8” connection,
  • Two-chamber oil bath system Twinoil.

Optional Equipment:

  • Made of inox,
  • Other length,
  • PTO shaft with shear bolt protection,
  • Wide-angle PTO,
  • 3 way valve mixing,
  • 3 way valve mixing with rotation,
  • Trolley with wheels,
  • Frame hydr. for three-point,

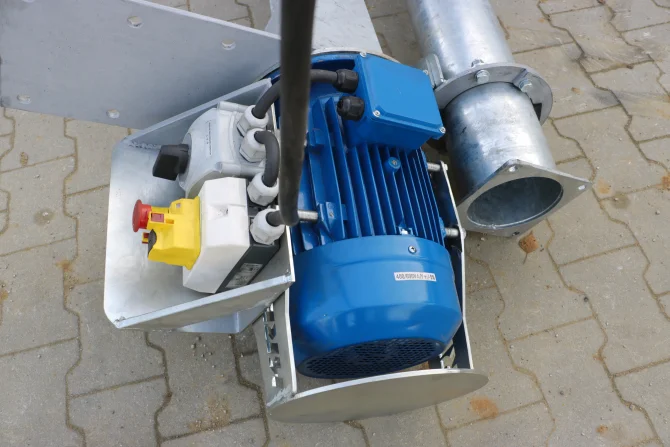

  • Set of electr. switches,
  • Top pipe extension [1m],
  • Remote control.

Technical Specifications

INDEX ENGINE (KW) WORKING DEPTH (M) LARGE WEIGHT (KG) CAPACITY
KR-PUMP-E 7,50 3,00 6" 180 100-150
KR-PUMP-E 11,00 3,00 6" 200 180-260
KR-PUMP-E 15,00 3,00 6" 220 220-300
KR-PUMP-E 18,00 3,00 6" 240 260-360
KR-PUMP-E 22,00 3,00 6" 270 320-420
KR-PUMP-M drive shaft 3,00 6" 200 300-500
