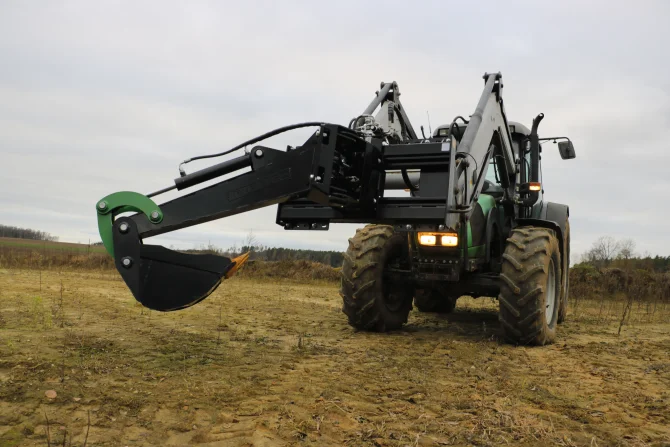

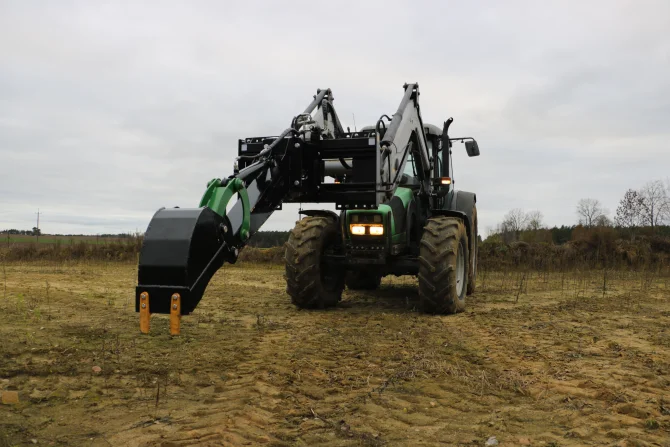

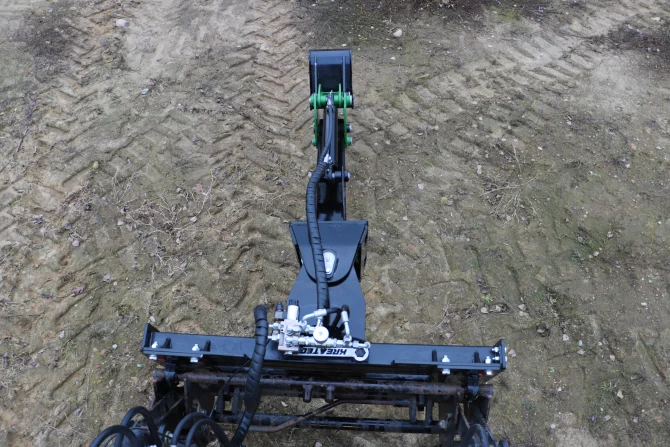

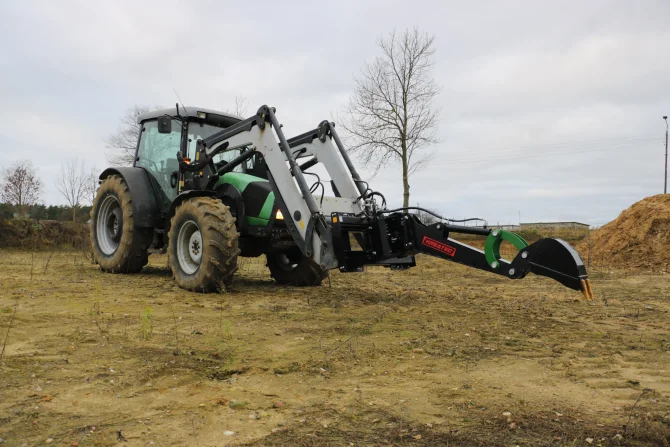

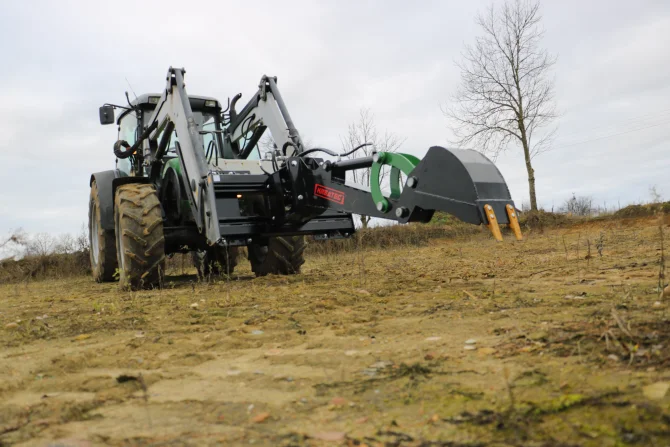

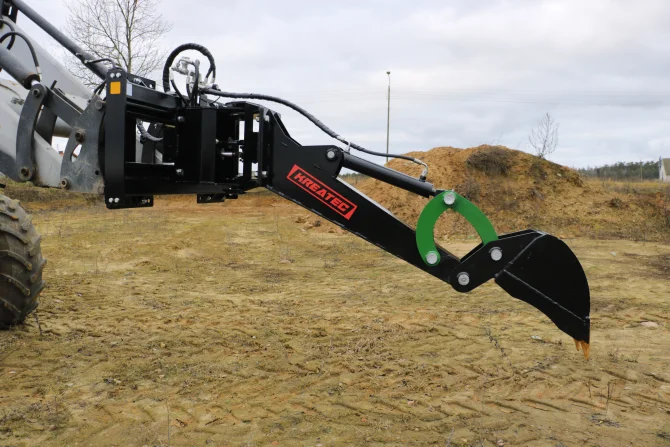

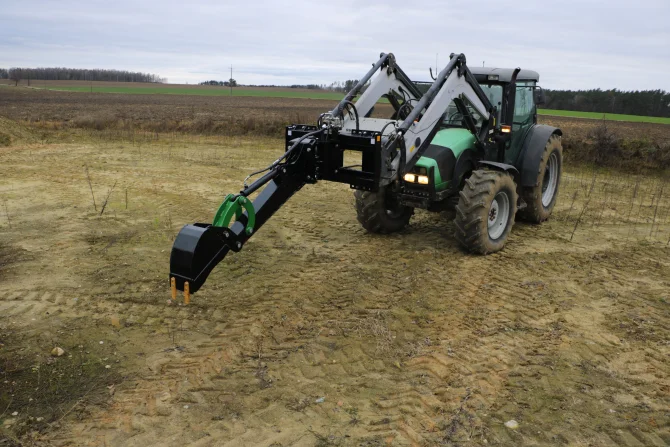

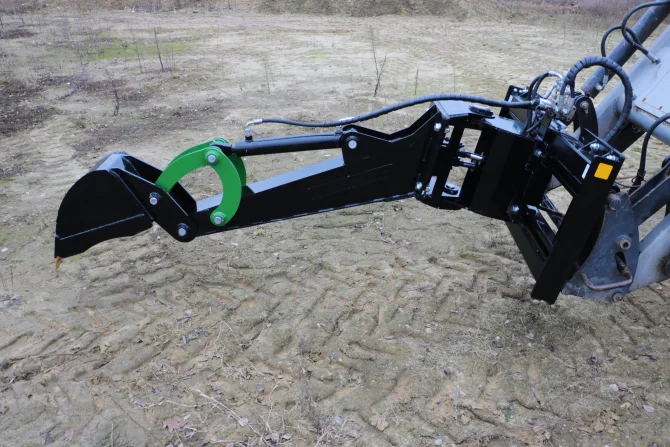

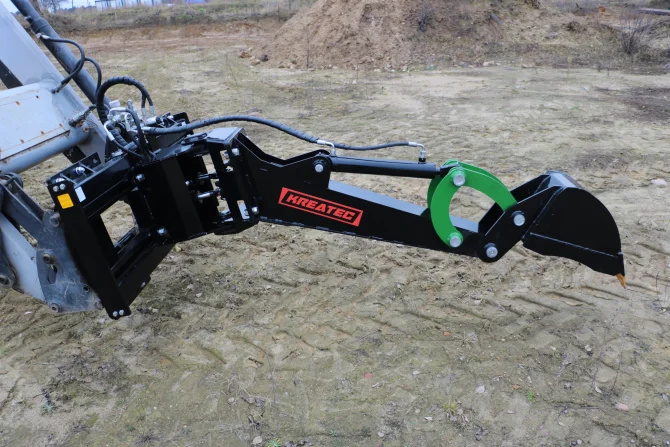

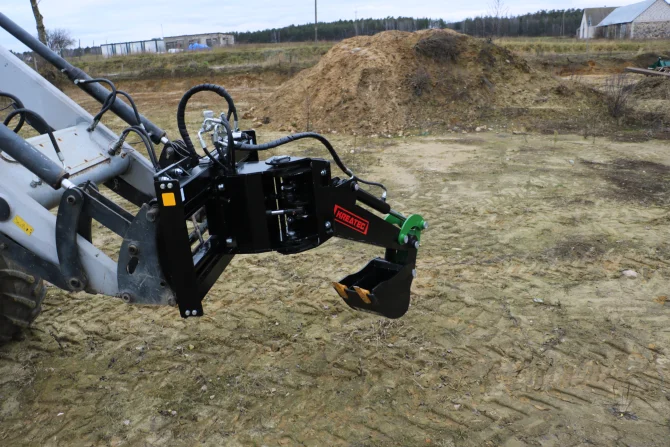

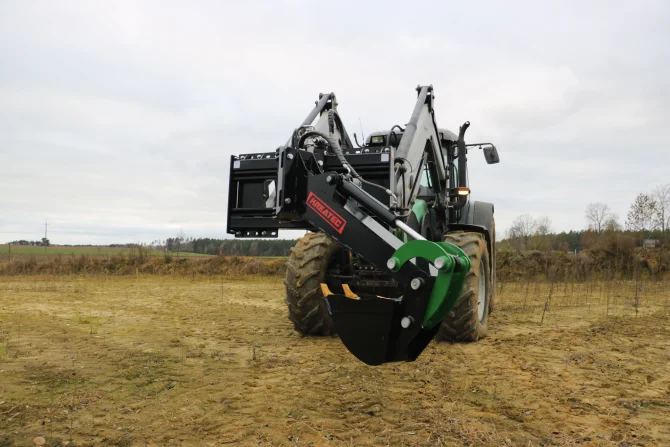

Excavator arms KR-KOP-H

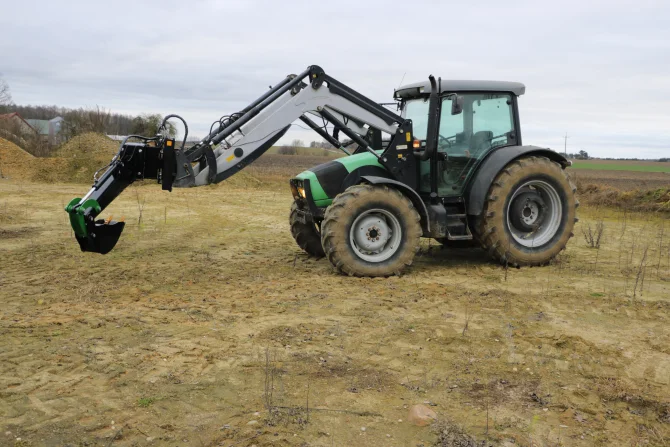

The excavator arm is an attachment used for small earthworks without the need for additional, expensive excavators.

Detailed Description

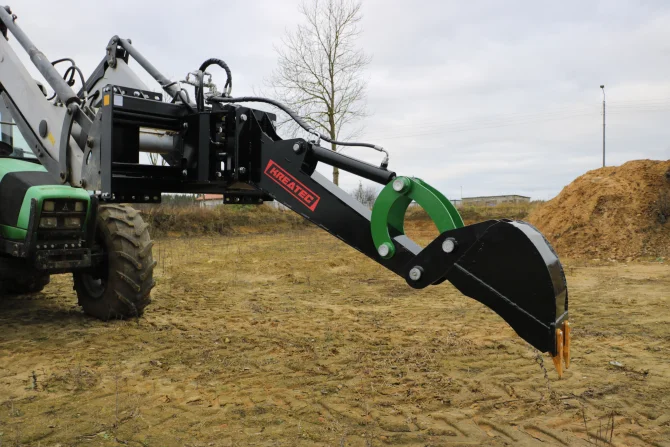

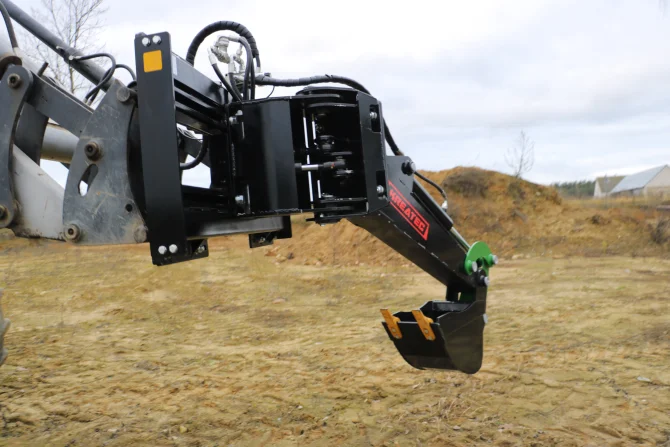

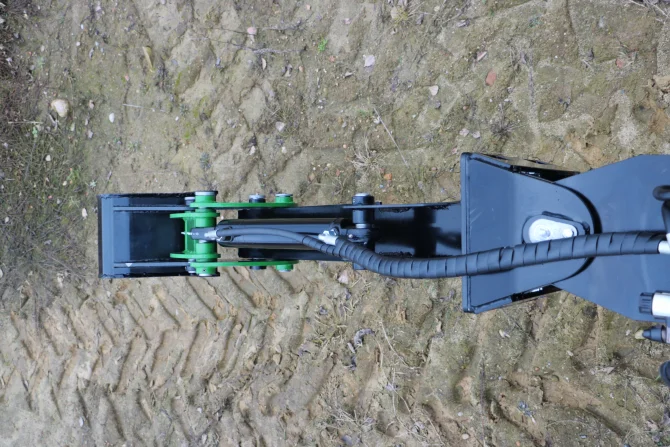

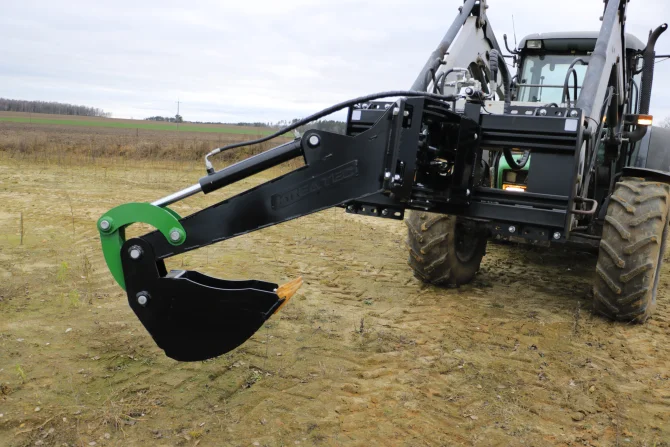

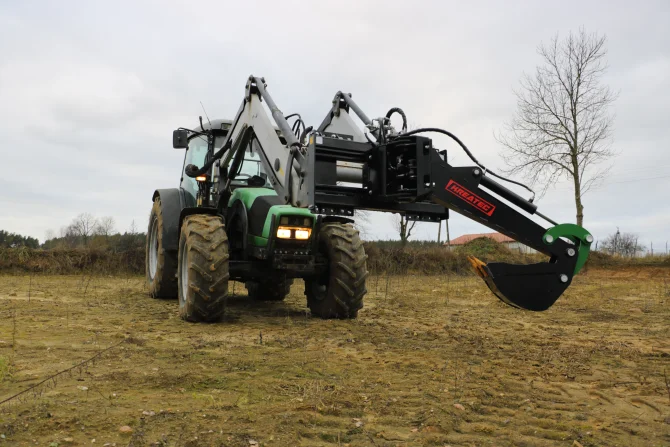

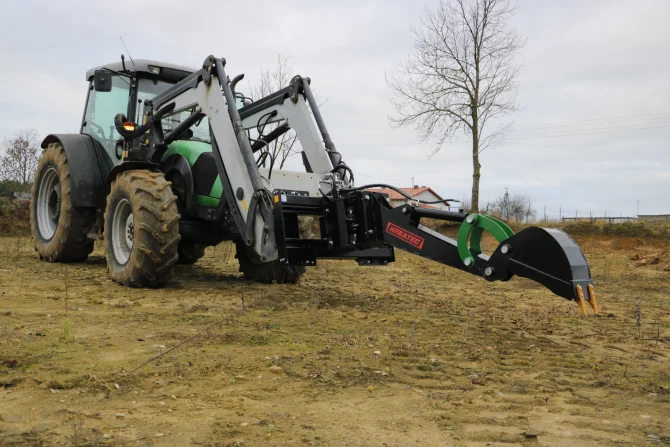

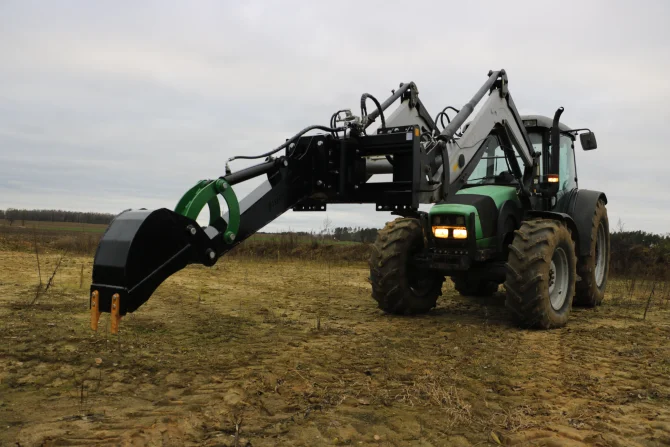

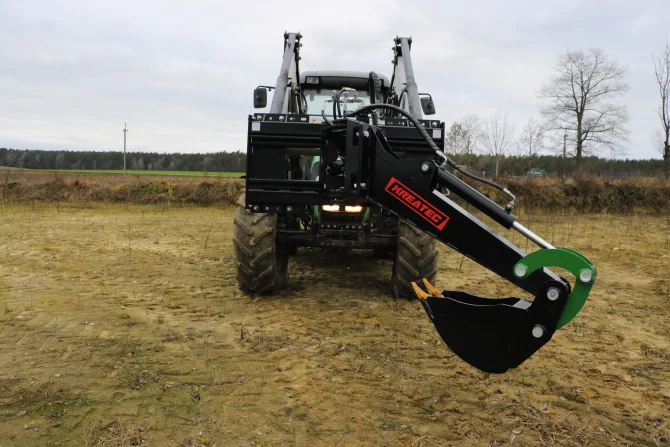

The excavator arm is an attachment used for small earthworks without the need for additional, expensive excavators. The bucket is equipped with replaceable chisels. The maximum digging depth is 1.5 m. The front excavator arm increases the functionality of loaders and mini loaders. The powder coating allows for long-term use without unnecessary corrosion. The main hydraulic cylinder with an outer diameter of 73 mm and a large range of motion proves particularly effective in the most difficult ground conditions. Available in bucket sizes from 0.2 to 1.2 m.

Standard Equipment:

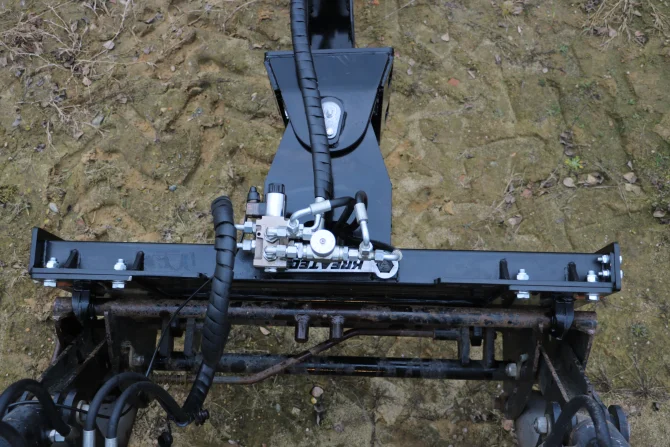

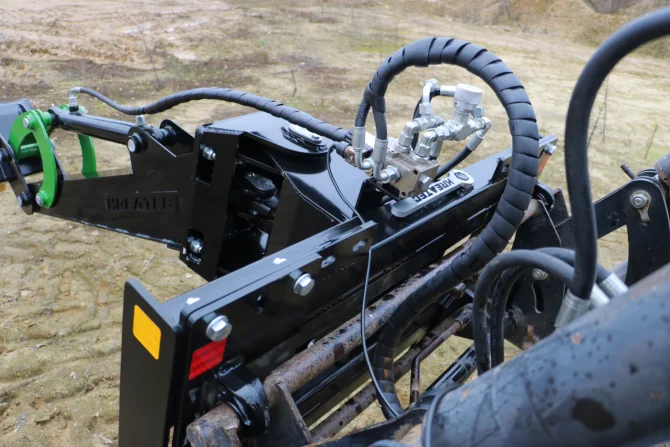

Solenoid valve with controller for operating the arm slewing function and digging function,
2 slewing cylinders with a large working angle,

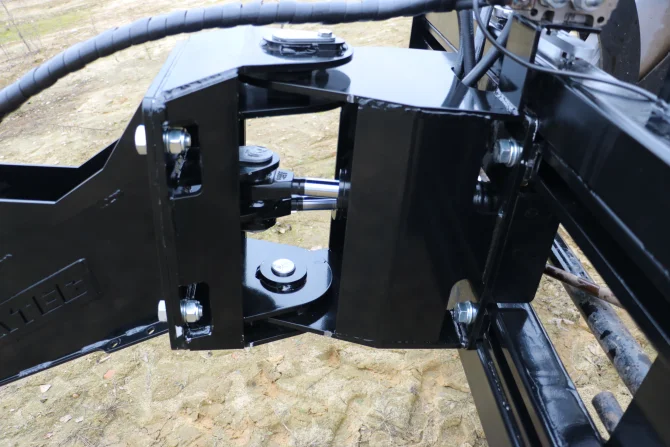

Mechanical left/right side shift on the mounting frame,
Key for locking the mechanical side shift,
Large working range of the bucket,
HB500 dozer blade,
One bucket included as standard,
Replaceable chisels for a 0.5 m bucket width,
Modular design allowing the arm to be retrofitted with additional options at a later stage,
Reinforced hoses from a reputable manufacturer,
Powder coatingm,
Manufactured from high-strength steel.

Optional Equipment:

Attachment,
Galvanized [kg],
Spare shovel 0,25m,
Spare shovel 0,4m,
Spare shovel 0,5m,
Spare shovel 1,2m,
Extension 0,4m,
MS03 quick-exchange,
Attachment screwed,
Holdfast mech. reg.

Technical Specifications

INDEX	MAXIMUM WORKING DEPTH (M)	SHOVEL WIDTH (M)	WEIGHT (KG)
KR-KOP-H2	1,52	0,25	190
KR-KOP-H4	1,52	0,40	195
KR-KOP-H5	1,52	0,50	200
