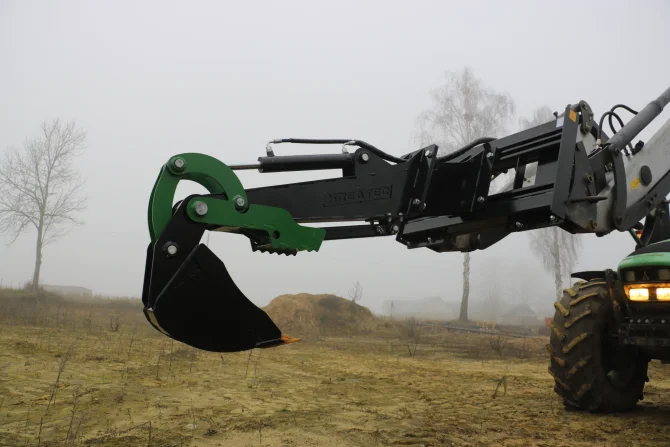

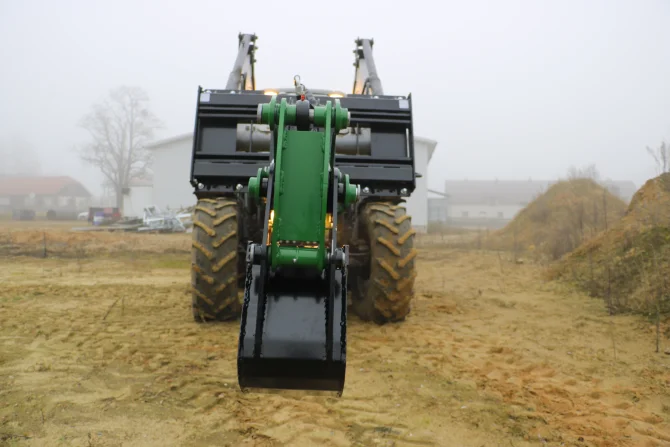

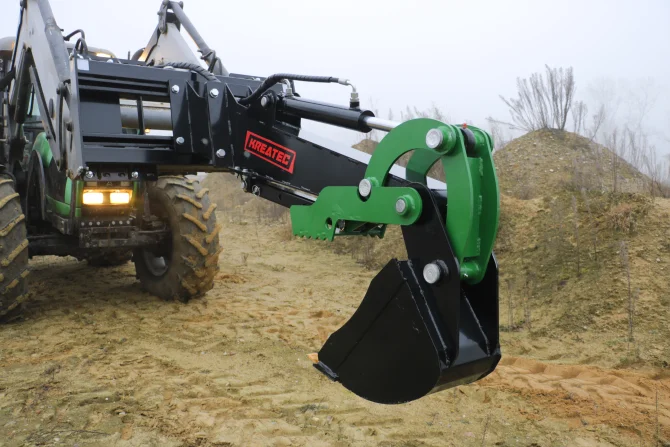

KR-KOP excavator arms

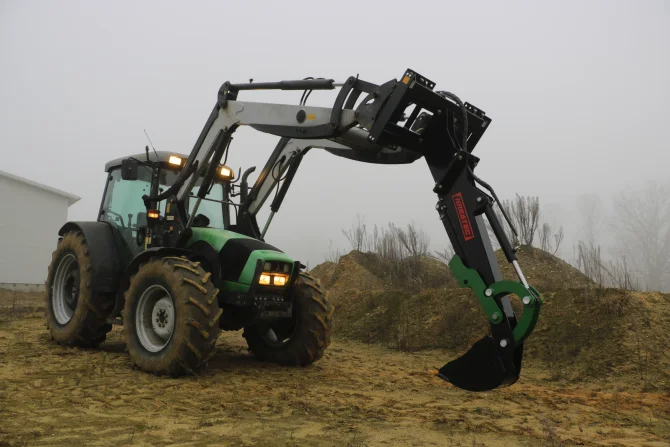

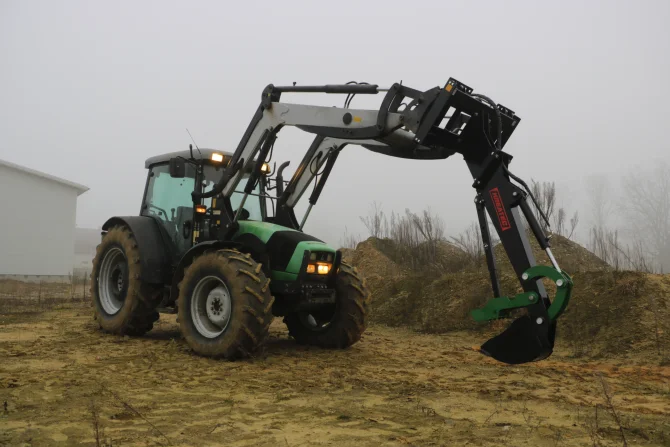

The excavator arm is an attachment used for small earthworks without the need for additional, expensive excavators.

Get a Quote

Detailed Description

The excavator arm is an attachment used for small earthworks without the need for additional, expensive excavators. The bucket is equipped with replaceable chisels. The maximum digging depth is 1.5 m. The front excavator arm increases the functionality of loaders and mini loaders. The powder coating allows for long-term use without unnecessary corrosion. The main hydraulic cylinder with an outer diameter of 73 mm and a large range of motion proves particularly effective in the most difficult ground conditions. Available in bucket sizes from 0.2 to 1.2 m.

Standard Equipment:

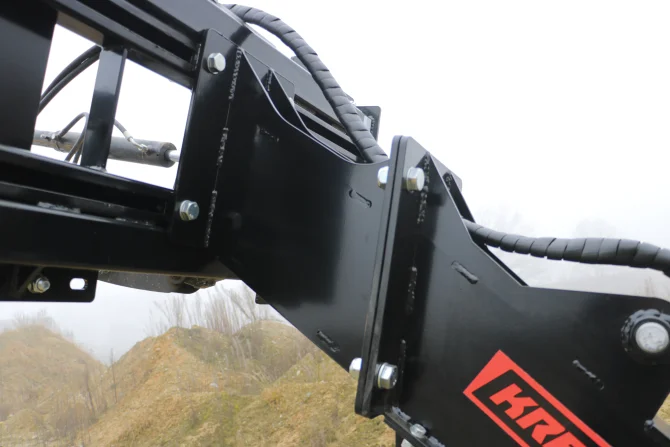

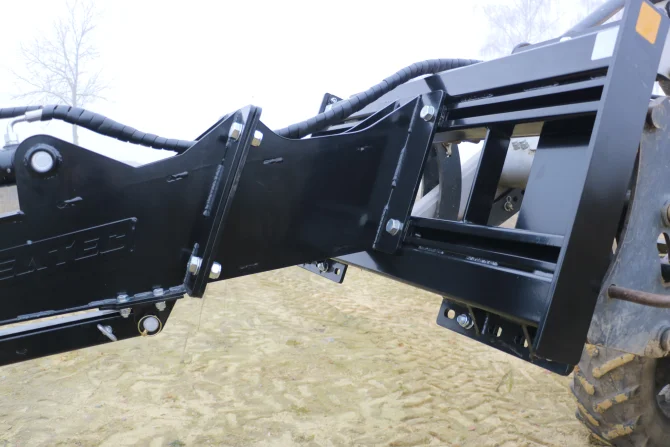

  • Mechanical left/right shift on the mounting frame

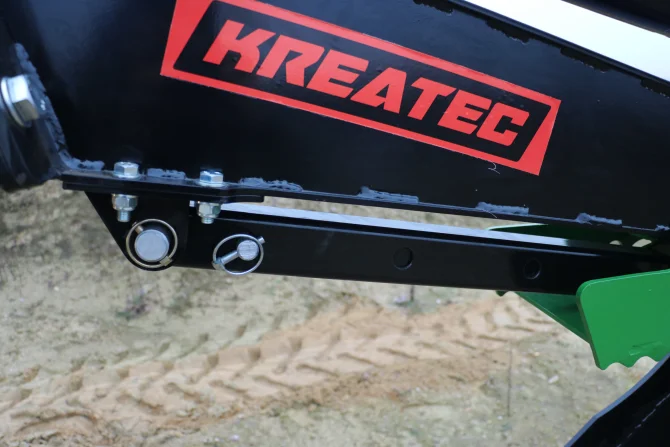

  • Locking key for the mechanical shift
  • Wide working range of the bucket
  • Blade made of HB500 steel
  • One bucket included as standard

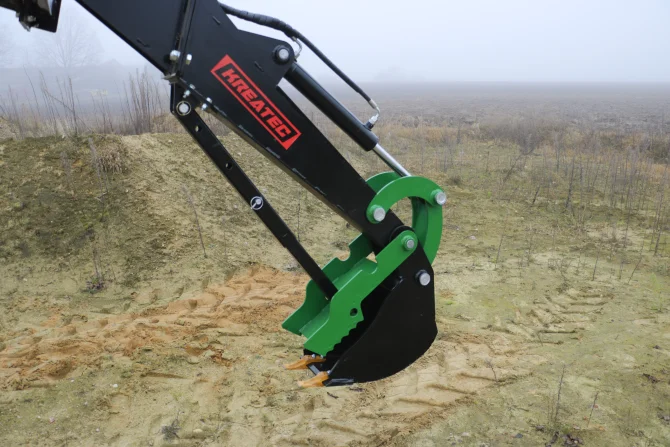

  • Replaceable chisels for 0.5 m bucket width
  • Modular design allowing the arm to be upgraded with additional options at a later stage
  • Reinforced hoses from a reputable manufacturer
  • Powder-coated finish
  • Made of high-strength steel

Optional Equipment:

  • Attachment
  • Galvanized [kg]
  • Spare shovel 0,25m
  • Spare shovel 0,4m
  • Spare shovel 0,5m
  • Spare shovel 1,2m
  • Extension 0,4m
  • MS03 quick-exchange
  • Attachment screwed
  • Holdfast mech. reg.

Technical Specifications

INDEX MAXIMUM WORKING DEPTH (M) SHOVEL WIDTH (M) GEWICHT (KG)
KR-KOP-2 1,52 0,25 150
KR-KOP-4 1,52 0,40 155
KR-KOP-5 1,52 0,50 160
