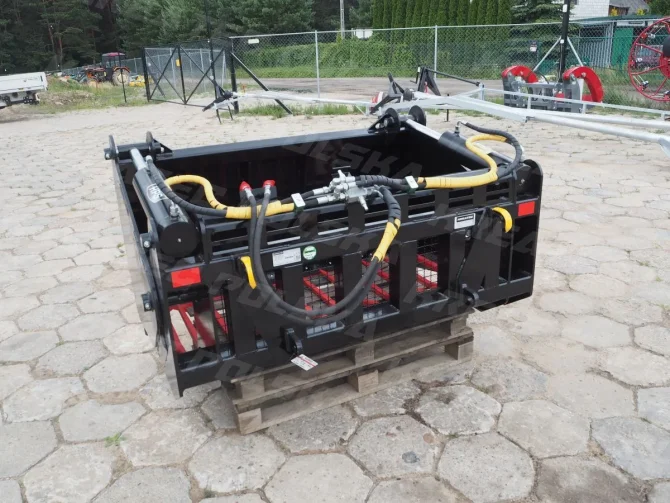

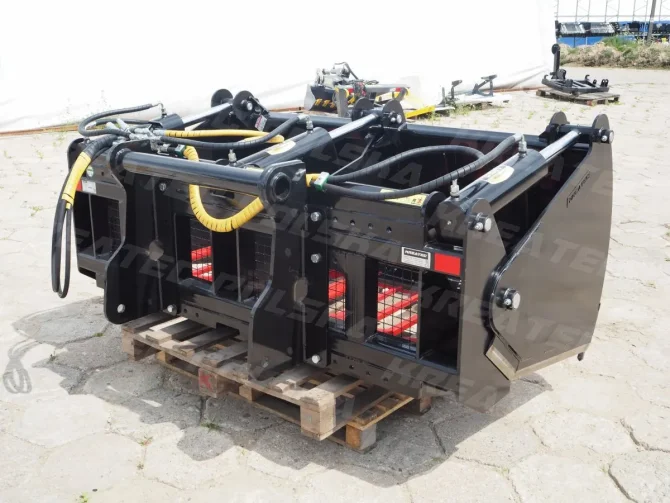

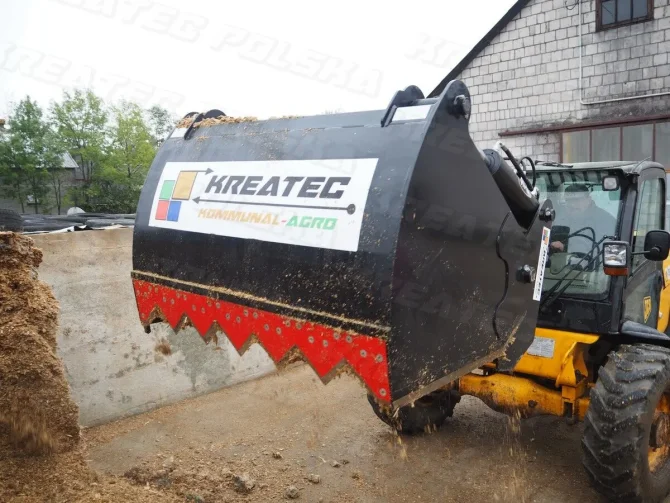

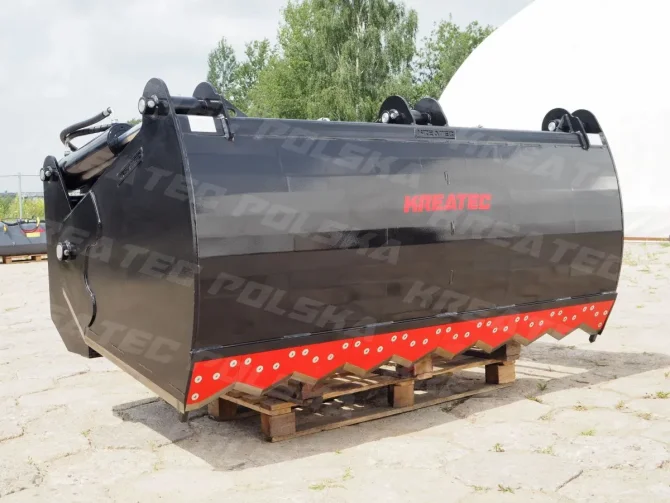

Silage cutting tongs KR-WYC

Silo roller with 2 or 3 hydraulic cylinders.

Get a Quote

Detailed Description

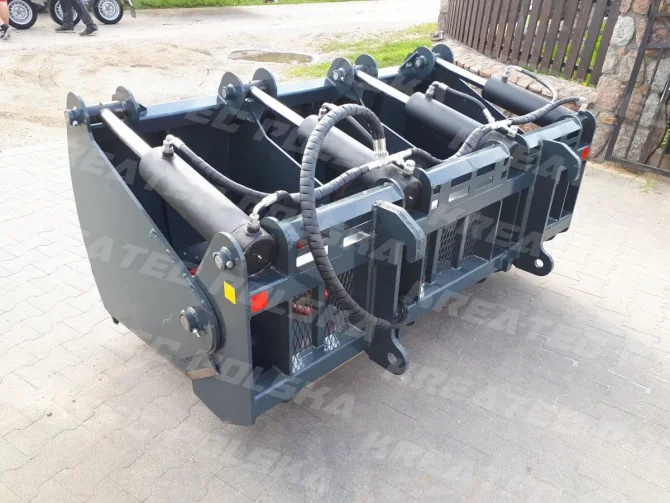

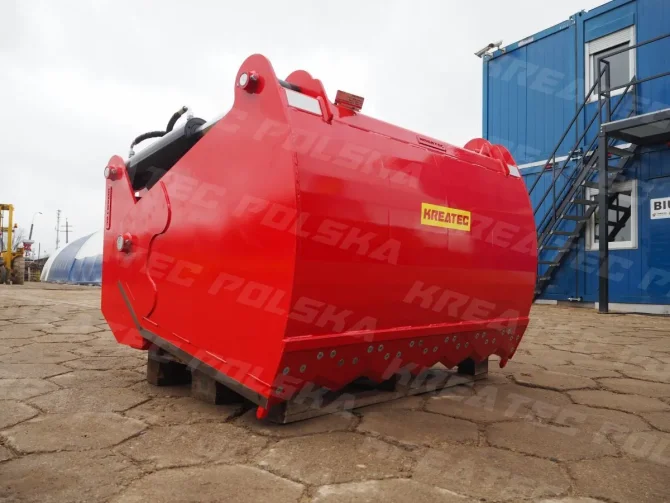

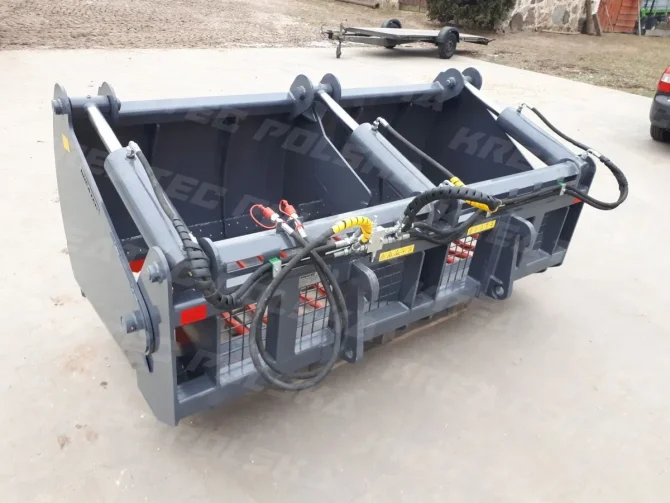

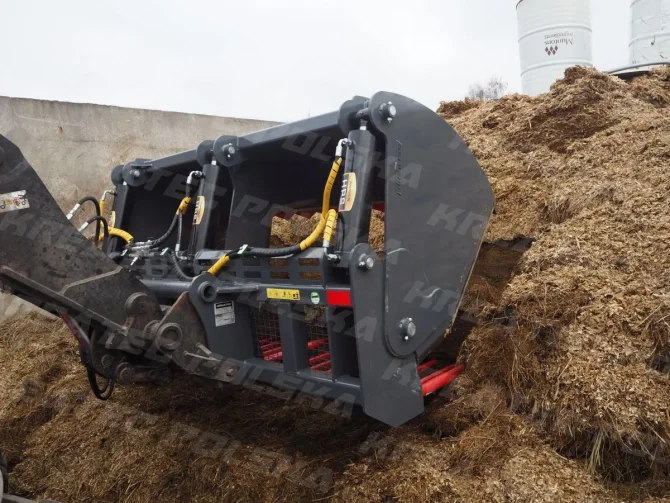

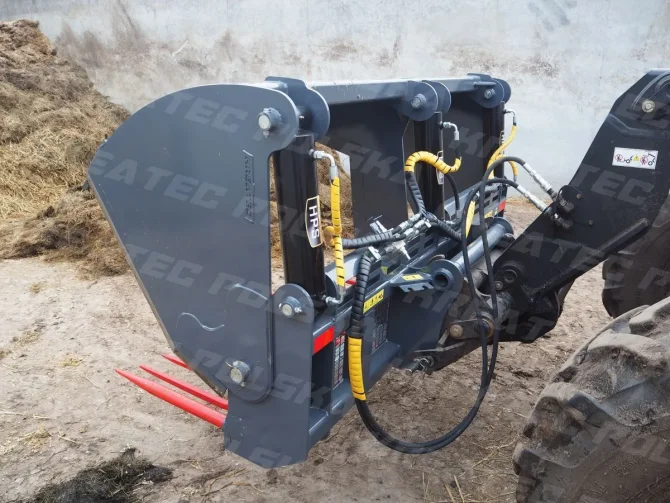

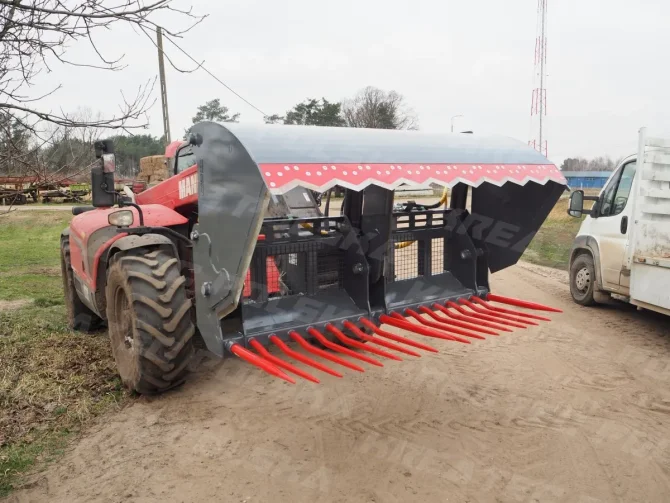

Silo roller with 2 or 3 hydraulic cylinders. Available in widths from 1.2 to 1.8 m with two cylinders or in widths from 1.8 to 2.4 m with three cylinders. The front teeth are made of HARDOX 550 steel and are replaceable. A net is provided as standard to prevent small particles from falling out at the rear of the machine. The silo roller is powder-coated, which effectively prevents premature rusting.

Standard Equipment:

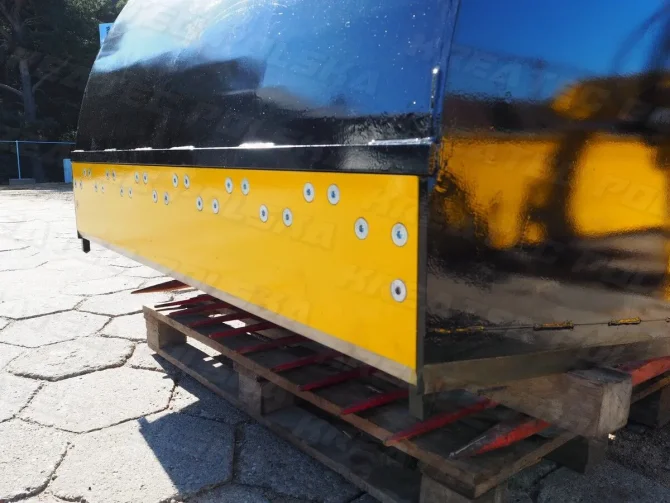

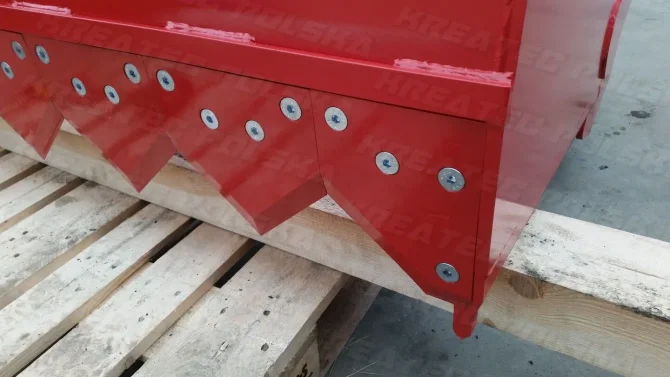

Replaceable blades made of HARDOX 500
Skid shoes made of HARDOX 500

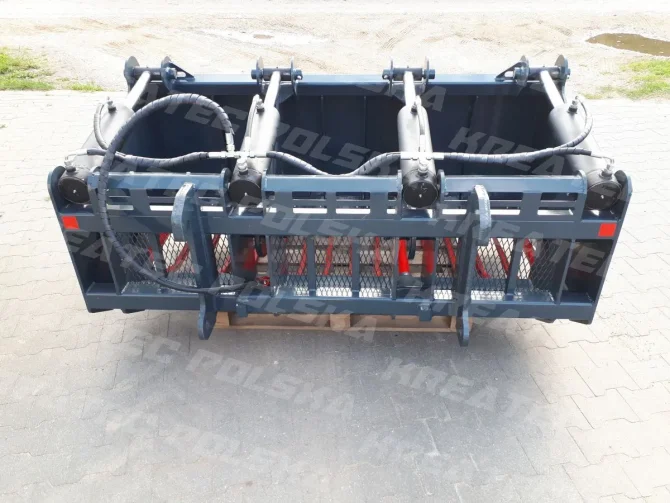

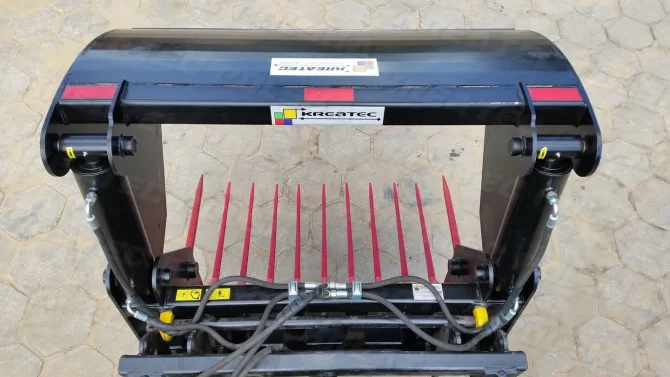

Net at the rear of the device
SHW or FSDT tines
2 hydraulic cylinders (3 of 1800 mm),
Transport eye,
Reinforcing ribs,
Hydraulic hoses 330 bar,
Reinforced steel S355 construction,

Optional Equipment:

Any attachment,
Overload valve,
Additional fourth cylinder for larger widths.

Technical Specifications

INDEX	WIDTH (M)	DEPTH (M)	VOLUME (M³)	OPENING WIDTH (M)	NUMBER OF TINES - NUMBER OF CYLINDERS	WEIGHT [KG]
KR-WYC-1200	1,20	0,95	0,75	0,88	10-2	475
KR-WYC-1400	1,40	0,95	0,90	0,88	11-2	520
KR-WYC-1600	1,60	0,95	1,00	0,88	12-2	565
KR-WYC-1800	1,80	0,95	1,15	0,88	13-3	675
KR-WYC-2000	2,00	0,95	1,25	0,88	15-3	740
KR-WYC-2200	2,20	0,95	1,40	0,88	17-3	800
KR-WYC-2400	2,40	0,95	1,50	0,88	17-3	980
