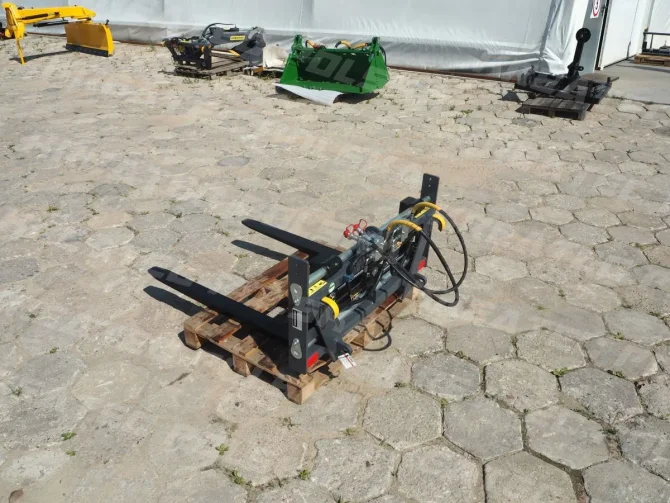

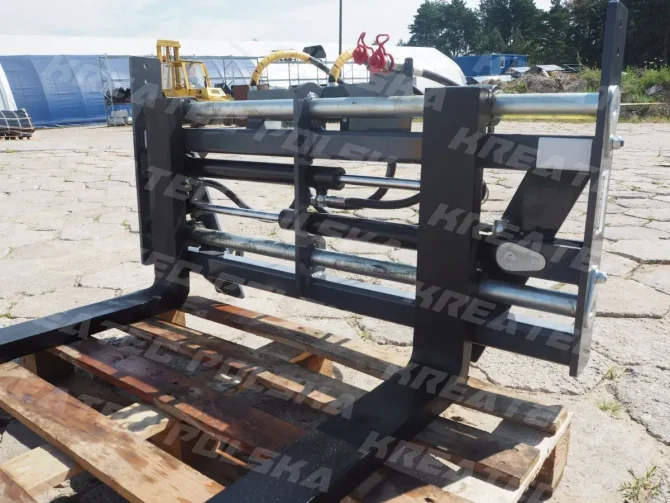

Forklifts KR-PAL-H

Movable fork lift truck with sleeves and round bars.

Detailed Description

Movable fork lift truck with sleeves and round bars. Forks in standard length of 1200 mm. A clear advantage is the ability to adjust the fork spacing without having to leave the tractor or loader. The structure is made of high-strength S355 steel. Load capacity from 2.0 to 6.0 tonnes. Forged and certified forks. The nominal load capacity is specified at a distance of 500 mm from the rear of the forks. Powder coating. FITS: EURO, MANITOU, JCB, CATERPILLAR, BOBCAT, JOHN DEERE, ATLAS, SCHAFFER, WEIDEMANN HV/NV, THALER, DIECI, SCORPION, SMS SOKÓŁKA, MERLO

Standard Equipment:

Forks 1200 mm, fully hardened.
Hydraulic lines with double sheathing, reinforced, 330 bar.
Construction made of reinforced structural steel S355.

Optional Equipment:

Galvanised construction,
Any mounting options,
Protective frame,
Other fork lengths
Hydraulic valves for adjusting the forks.

Technical Specifications

INDEX	LOAD CAPACITY (KG)	TINE LENGTH (MM)	TINES AVERAGE	WEIGHT [kg]	KAT (FEM)
KR-PAL-H-2000	2000	1200	80x40	175	2
KR-PAL-H-2500	2500	1200	100X40	205	2
KR-PAL-H-3500	3500	1200	100X45	255	3
KR-PAL-H-4200	4200	1200	125X45	300	3
KR-PAL-H-5000	5000	1200	125X50	330	3
KR-PAL-H-6000	6000	1200	150X50	360	3
