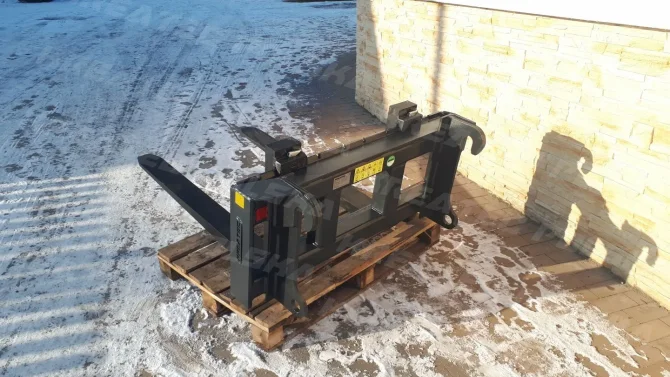

Forklifts KR-PAL

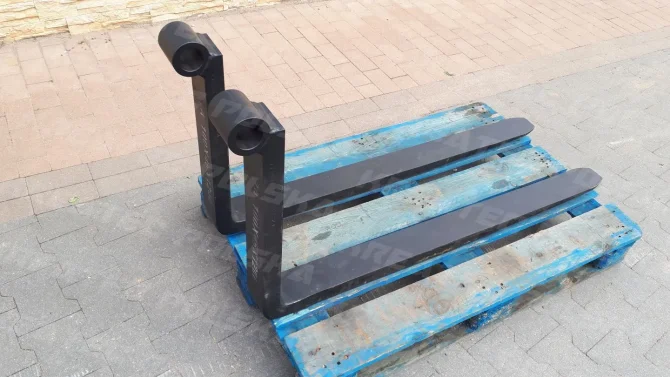

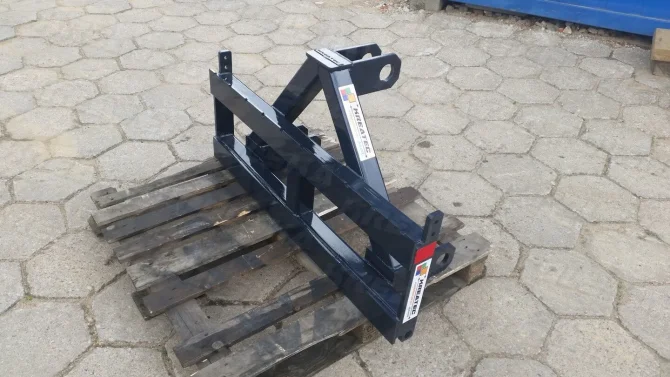

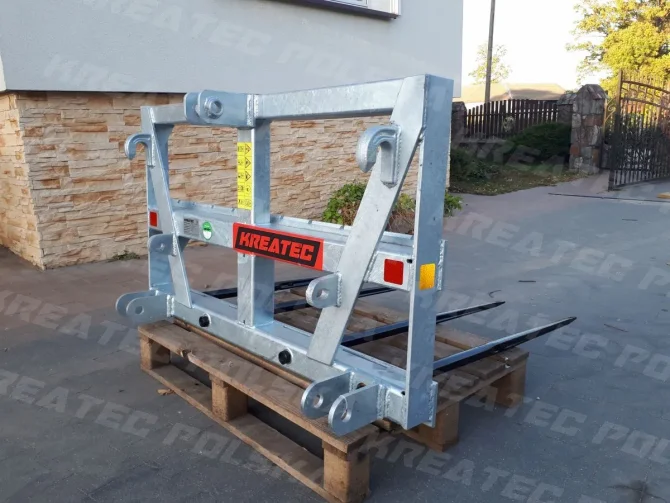

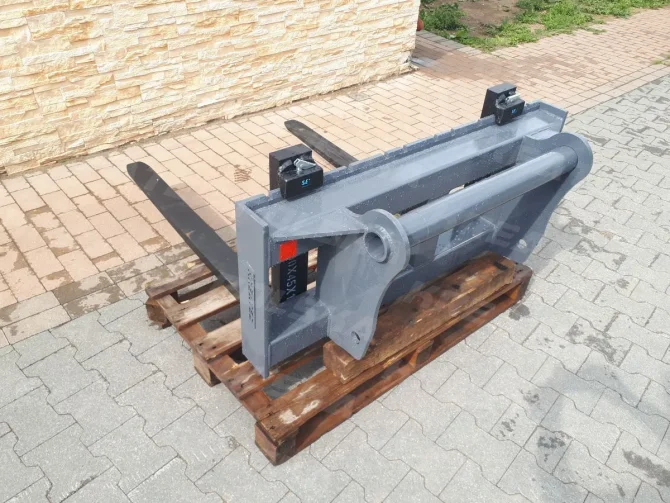

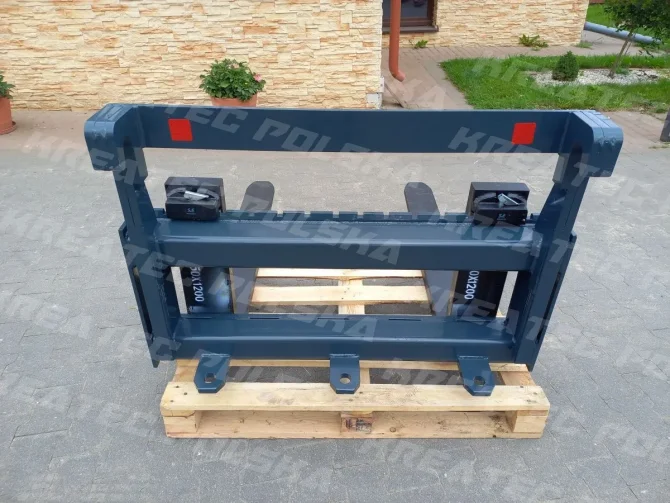

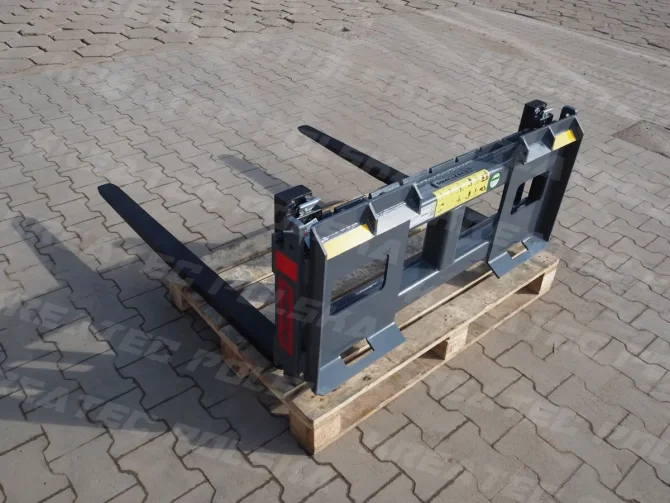

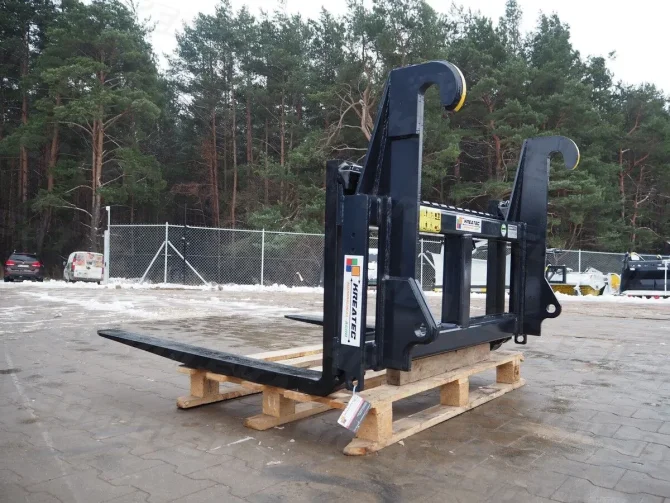

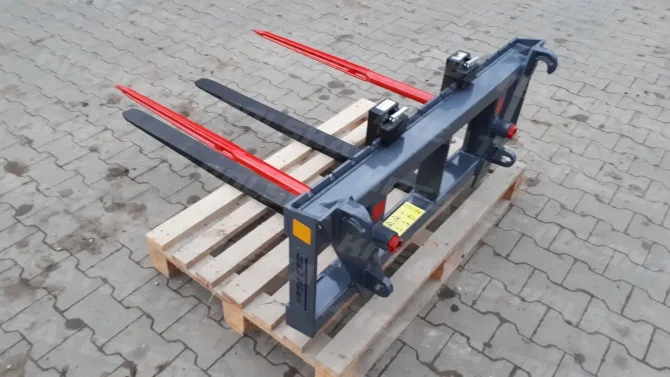

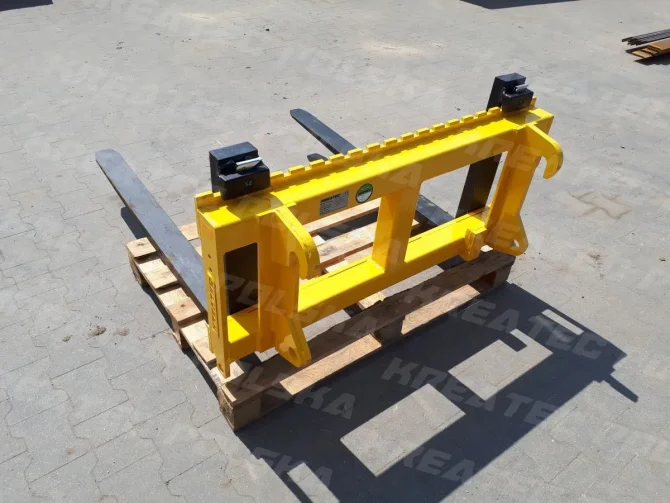

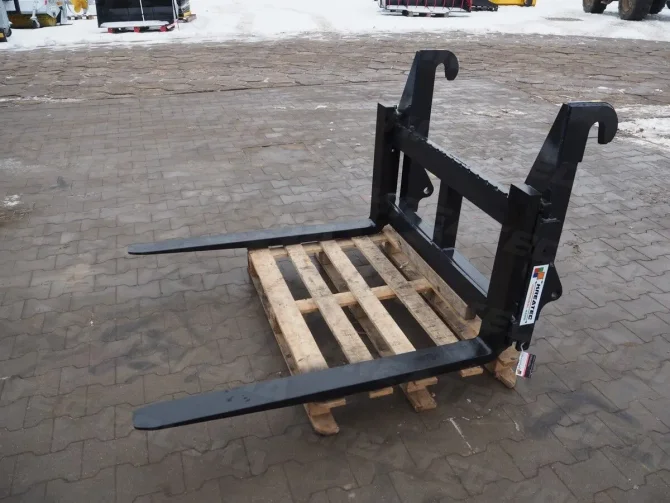

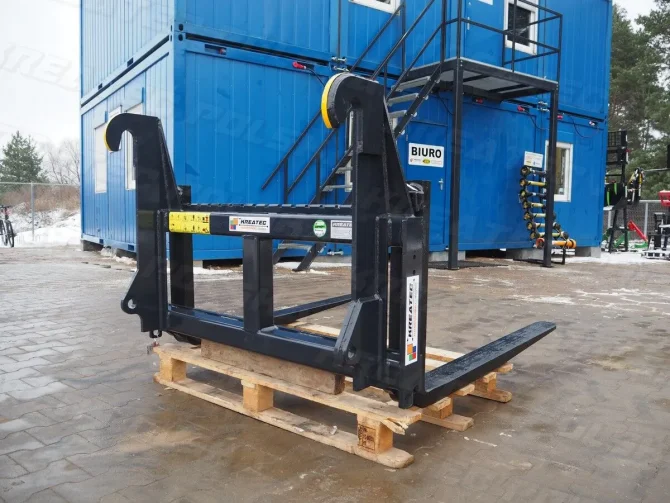

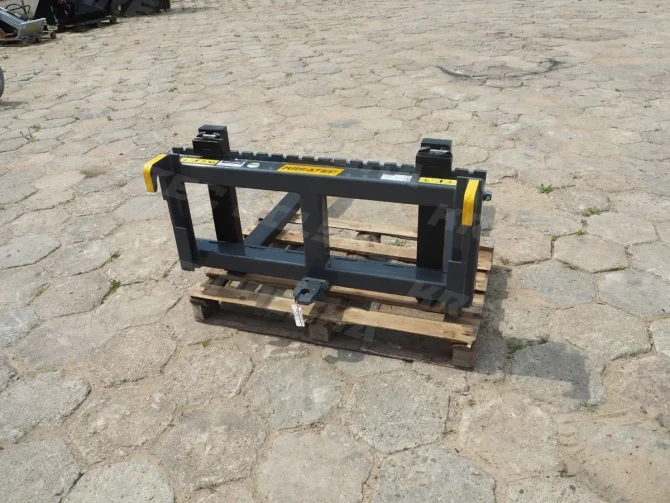

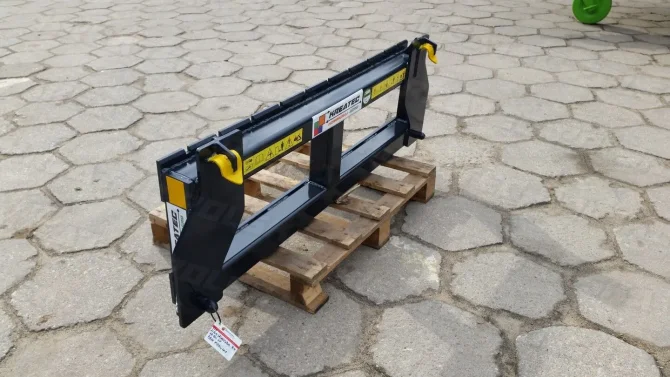

Pallet truck with sliding, milled carriage plate and forks locked against movement.

Get a Quote

Detailed Description

Pallet truck with sliding, milled carriage plate and forks locked against movement. Forks in standard length of 1200 mm. Load capacity from 2.0 to 6.0 tonnes. Forged and certified forks. The nominal load capacity is specified at a distance of 500 mm from the rear of the forks. Powder coating. Wheel loaders: EURO, MANITOU, JCB, CATERPILLAR, BOBCAT, JOHN DEERE, ATLAS, SCHAFFER, WEIDEMANN HV/NV, THALER, DIECI, SCORPION, SMS SOKÓŁKA, MERLO, others

Standard Equipment:

Fork 1200 mm fully hardened
Adjustment to protective frame
Reinforced steel S35 construction

Optional Equipment:

Galvanised construction,
Any mounting options,

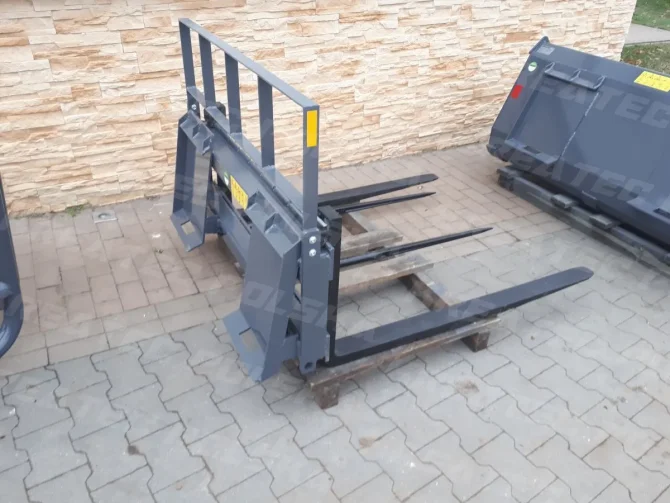

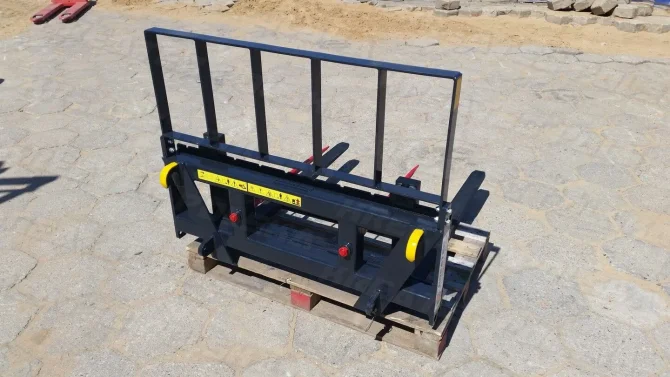

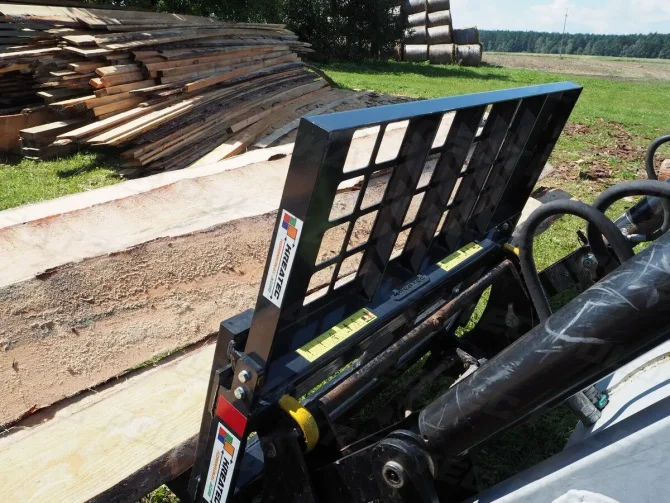

Protective frame,
Other fork lengths

Technical Specifications

INDEX	LOAD CAPACITY (KG)	TINE LENGTH (MM)	TINES AVERAGE	WEIGHT [kg]
KR-PAL-2000	2000	1200	80x40	145
KR-PAL-2500	2500	1200	100X40	175
KR-PAL-3500	3500	1200	100X45	225
KR-PAL-4200	4200	1200	125X45	270
KR-PAL-5000	5000	1200	125X50	300
KR-PAL-6000	6000	1200	150X50	330
