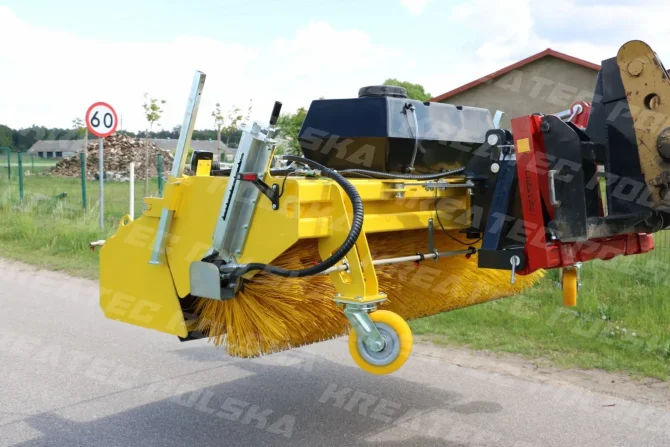

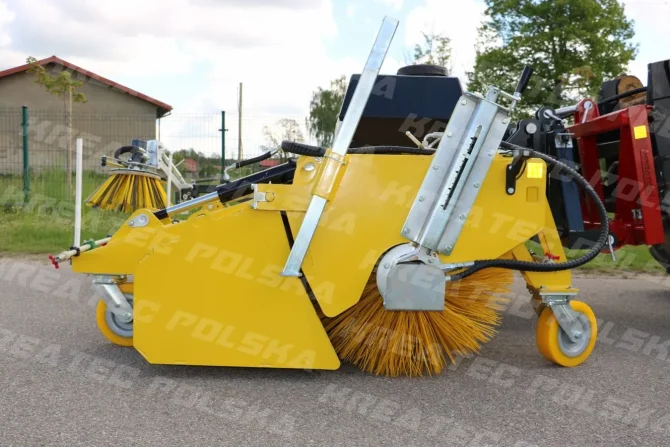

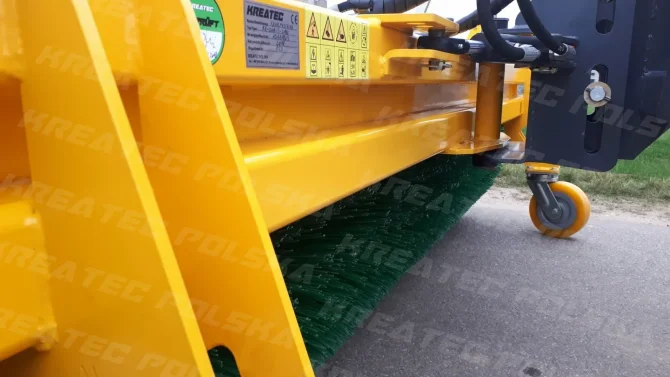

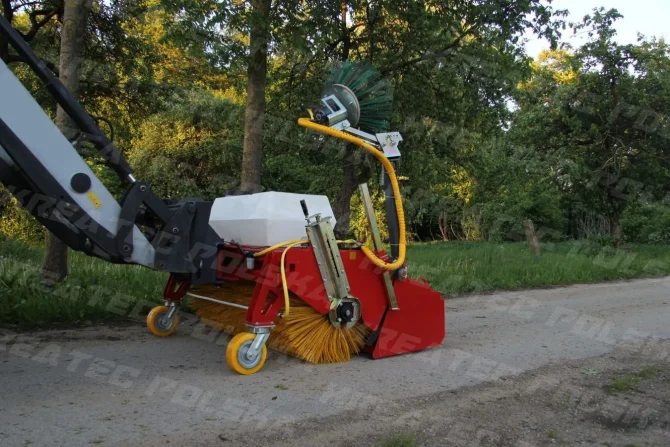

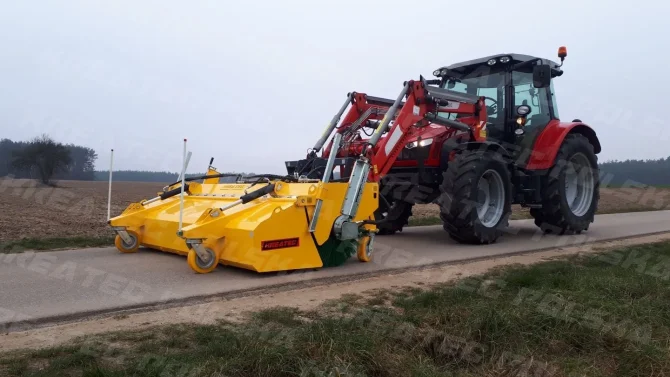

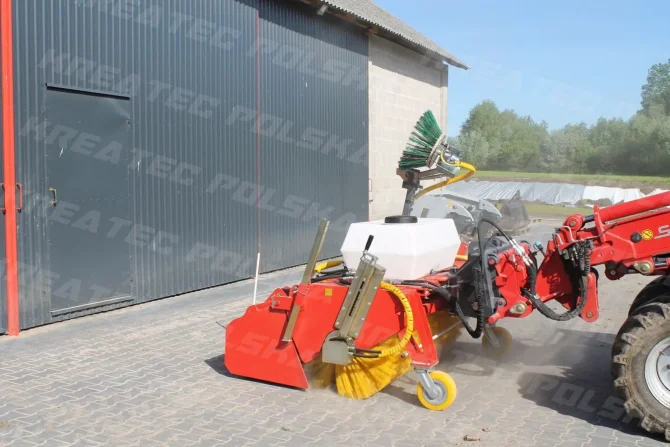

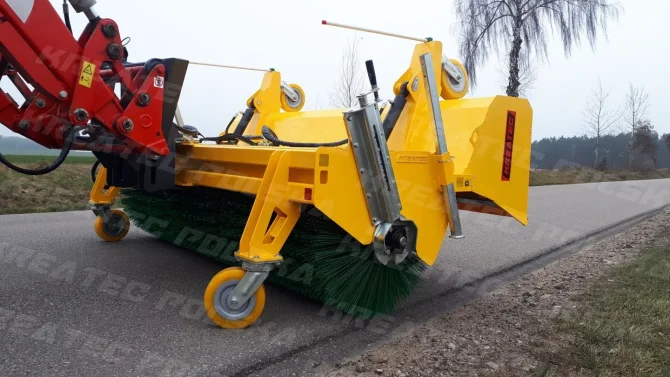

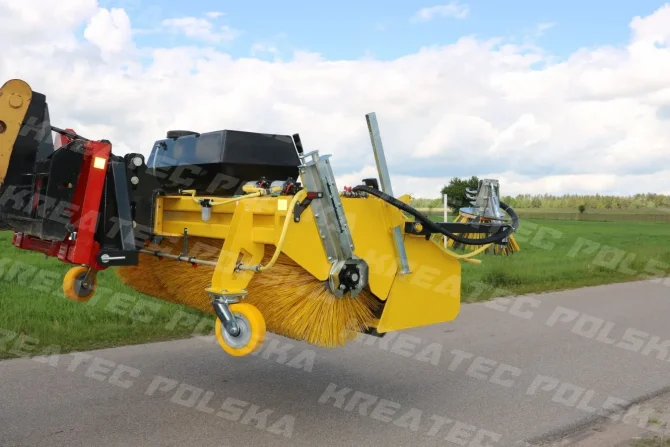

KR-ZAM T sweeper

The KR-ZAM-T hydraulic sweeper was developed for professional cleaning applications on construction sites, in agriculture and in municipal operations.

Get a Quote

Detailed Description

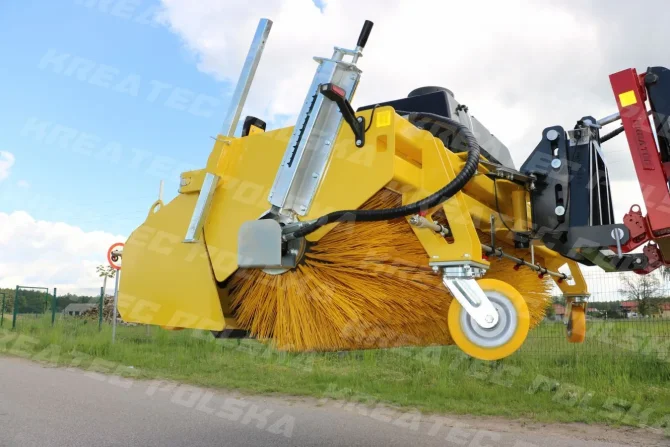

The KR-ZAM-T hydraulic sweeper was developed for professional cleaning applications on construction sites, in agriculture and in municipal operations. Thanks to its robust frame made of high-strength S355 steel and a reliable hydraulic drive, it offers maximum performance and durability. The machine is equipped as standard with a hydraulic brush drive, hydraulic emptying, a 3-way flow valve, a dirt container with rubber lip and ball-bearing support wheels. The brush diameter of 760 mm guarantees thorough cleaning of any surface. With optional accessories such as a water tank with spray system, hydraulic rotation, side brushes, LED lighting or galvanised finish, the sweeper can be perfectly adapted to individual requirements. Available in working widths from 1.6 to 2.8 metres, the KR-ZAM-T impresses with its performance, flexibility and ease of use. Typical areas of application: Yard and street cleaning Agricultural businesses Municipal services Industrial areas Main advantages: Durable and stable construction High cleaning performance with low maintenance requirements Easy to mount on various vehicles Flexible configuration thanks to extensive range of accessories Spare parts and service available long term

Standard Equipment:

hydraulic brush drive
hydraulic tipping emptying of the basket
Operated with 1 pair of hydraulic connections
shock absorption
Mounted support wheels with a load capacity of 650 kg each and a diameter of 250 mm
Dirt container with rubber strip
Rubber guard between dirt container and sweeper cover
Hydraulic hoses 330 bar,
Brush diameter 760 mm,
3-way flow control valve
Easy brush height adjustment,
Drawbar floating function,
Reinforced structural steel S355 construction
Main brush made of PP material,
Powder coating,
Snow removal function by locking the basket in the upper position,
Euro mount,
Euro hydraulic quick couplers.

Optional Equipment:

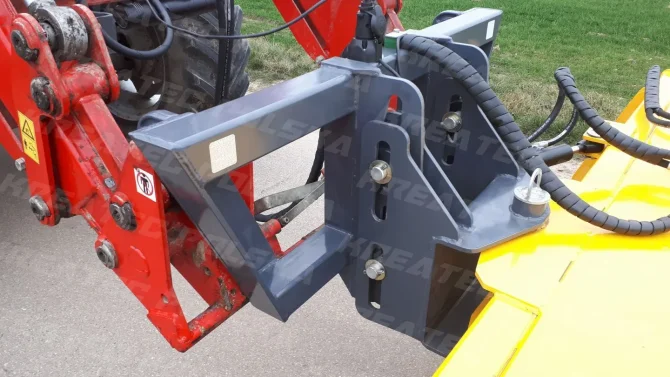

Mounting bracket,
Galvanisation,

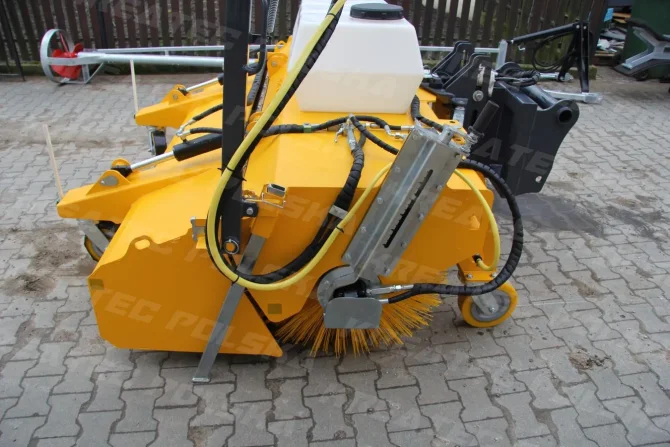

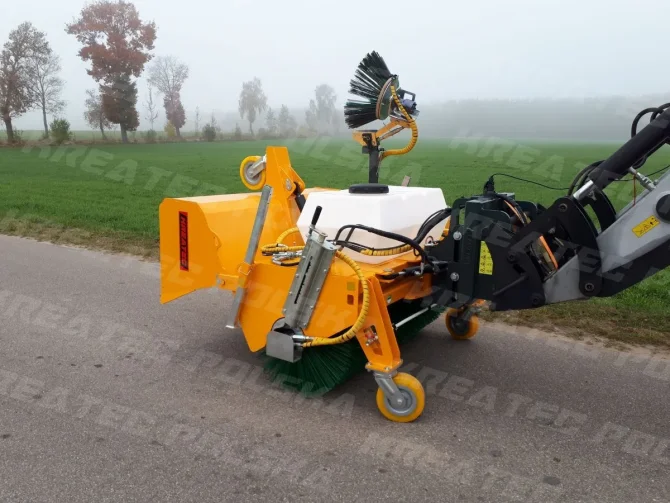

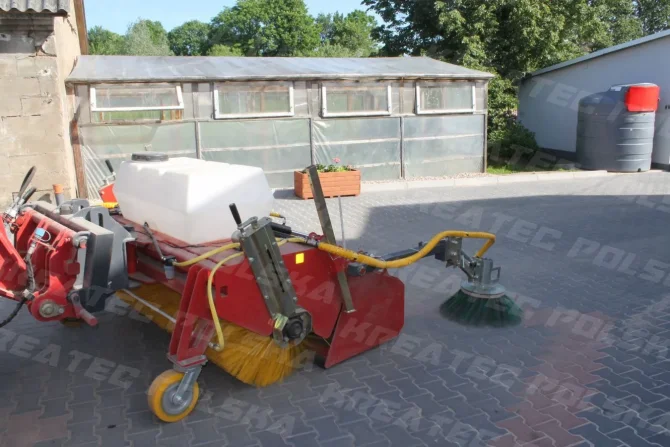

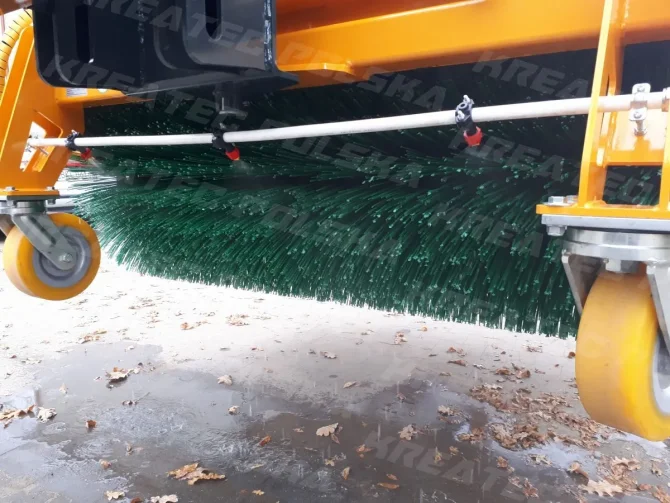

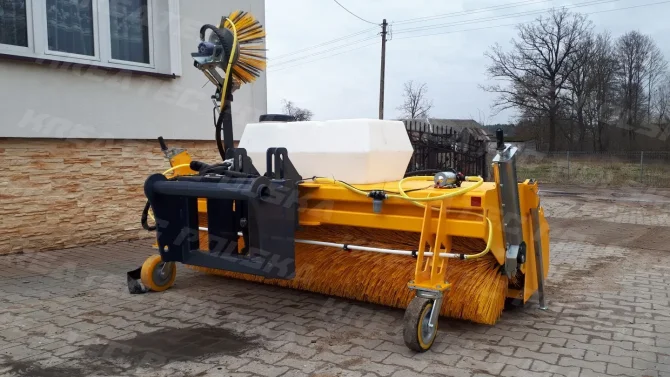

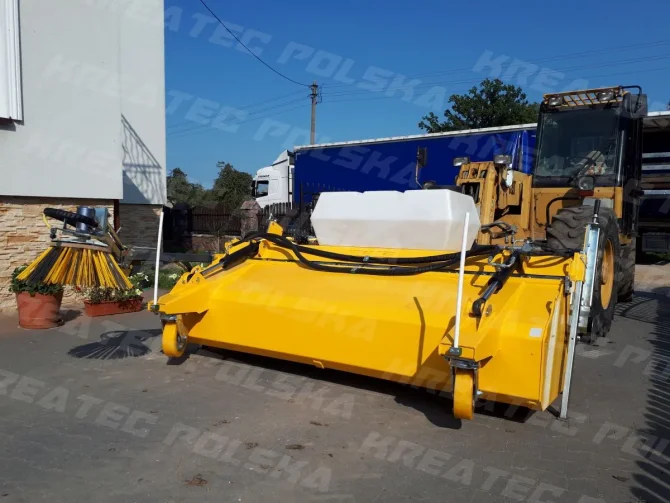

Water tank with irrigation system,
Hydraulic rotation with 3-way ball valve,
Hydraulic rotation with solenoid valve,

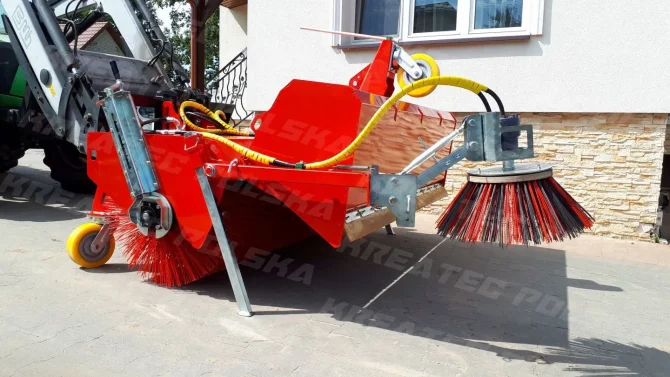

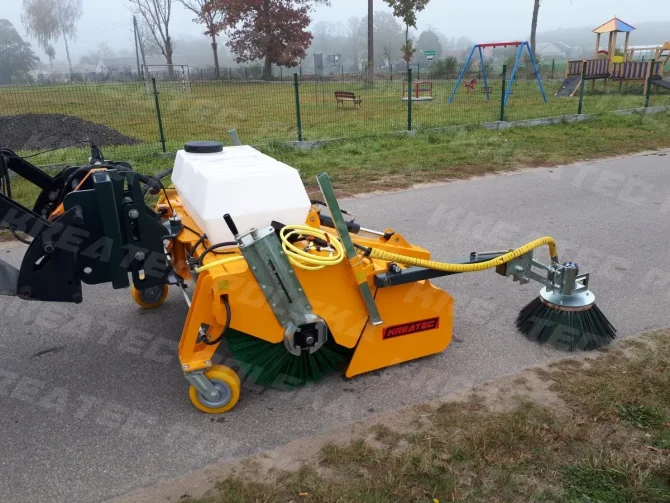

Side brush,
Without basket,
spare wheel,

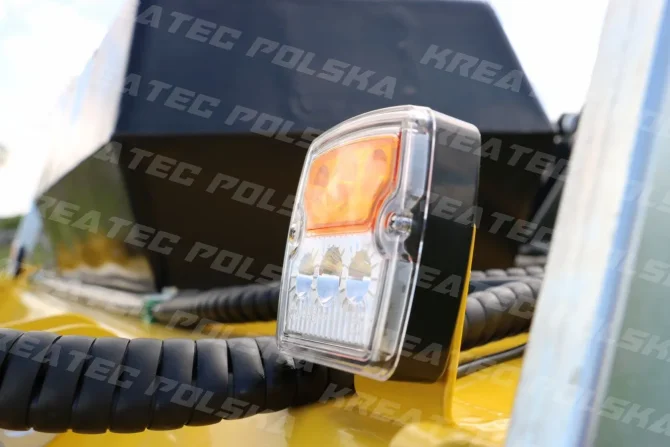

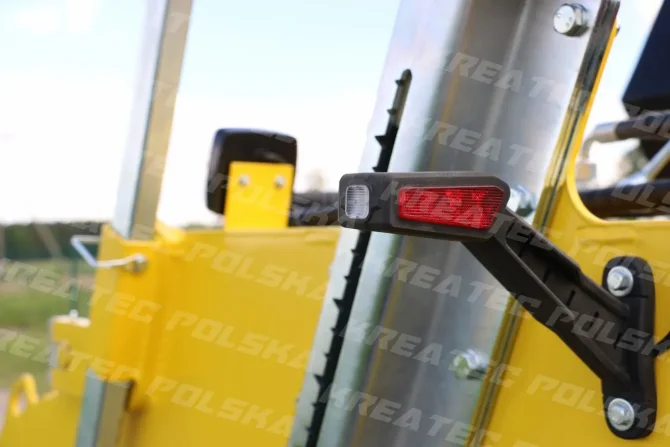

LED lighting,
Slider instead of basket,
Fourth wheel with cylinder,
Bolted mounting bracket.

Technical Specifications

INDEX	WIDTH (M)	BRUSH (MM)	NUMBER OF WHEELS	WEIGHT (KG)
KR-ZAM-T-1600	1,60	760	3	540
KR-ZAM-T-1800	1,80	760	3	580
KR-ZAM-T-2000	2,00	760	3	620
KR-ZAM-T-2200	2,20	760	3	660
KR-ZAM-T-2400	2,40	760	3	740
KR-ZAM-T-2600	2,60	760	3	780
KR-ZAM-T-2800	2,80	760	3	830
