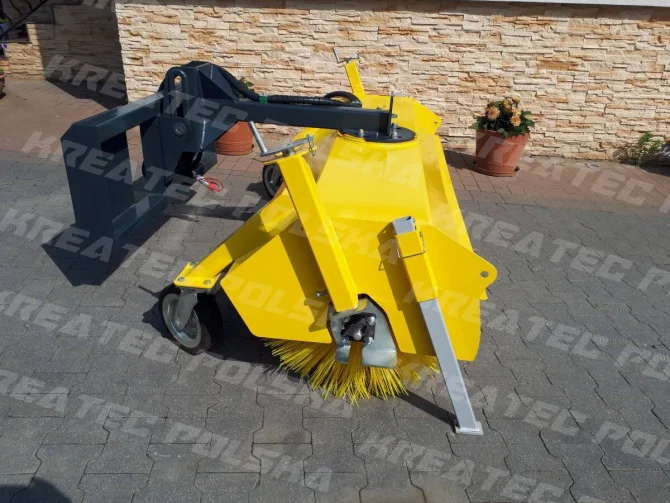

KR-ZAM sweeper

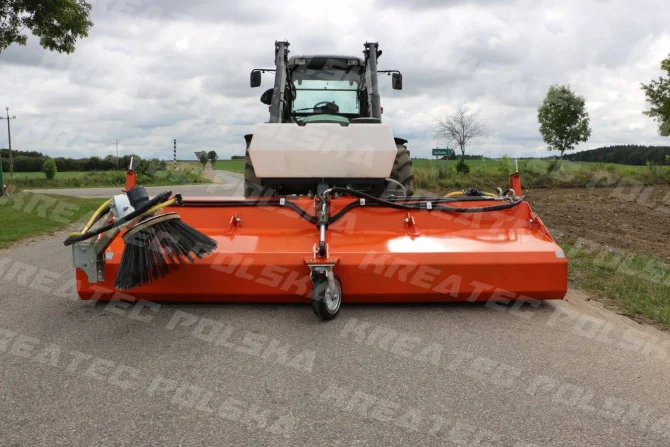

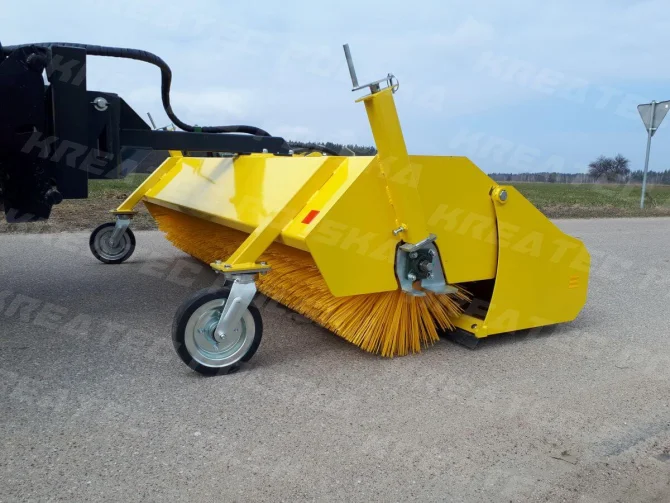

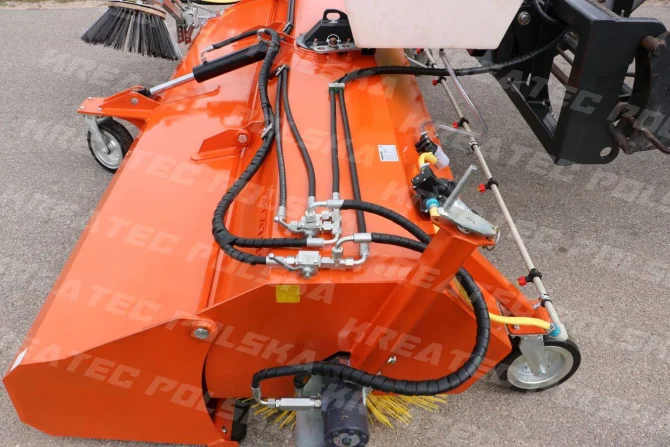

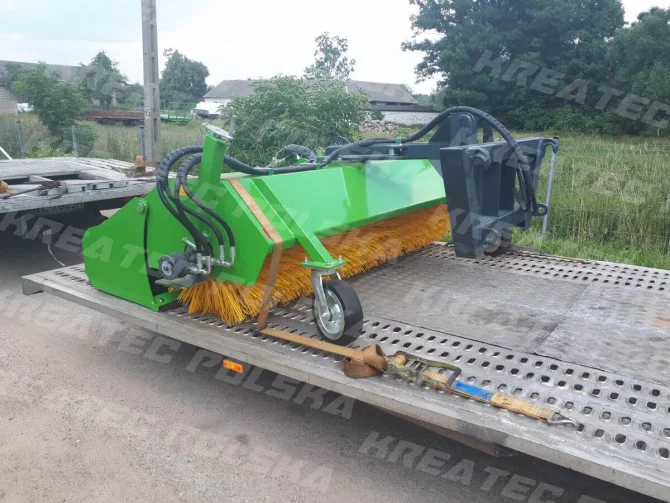

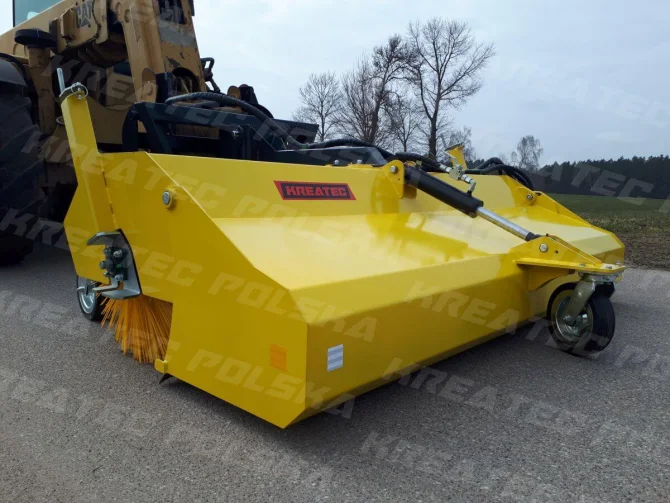

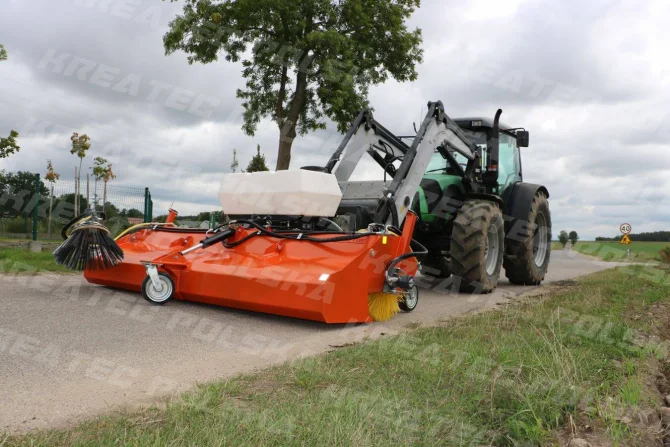

KREATEC KR-ZAM sweeper – Hydraulic mounted sweeper for tractors and municipal equipment The KREATEC KR-ZAM sweeper is a powerful, hydraulically driven mounted sweeper for professional use in agriculture, municipal equipment and industry.

Get a Quote

Detailed Description

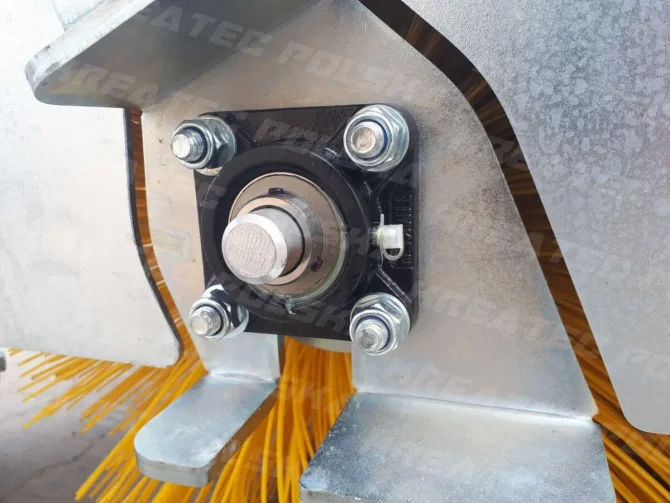

KREATEC KR-ZAM sweeper – Hydraulic mounted sweeper for tractors and municipal equipment The KREATEC KR-ZAM sweeper is a powerful, hydraulically driven mounted sweeper for professional use in agriculture, municipal equipment and industry. It impresses with its robust construction, simple operation and high cleaning performance – ideal for courtyards, roads, parking areas and construction sites. Technical highlights at a glance: Hydraulic direct drive with powerful high-performance motor – powerful, low maintenance Sturdy, powder-coated frame for maximum durability and protection against corrosion Working widths from 1.20 m to 2.80 m – ideal for yards, roads, construction sites and municipal applications Optional sweeping function with liftable collection container for flexible use Easily accessible bearings for simple maintenance Universal mounting – suitable for tractors, wheel loaders, yard loaders and forklifts from various manufacturers Why KREATEC KR-ZAM? The KR-ZAM sweeper combines efficiency, robustness and ease of use. Thanks to its modular design, each model can be optimally adapted to the respective area of application – from standard machines to professional municipal sweepers. Enquire now Contact us for a personal consultation

Standard Equipment:

  • Hydraulic brush drive,
  • Hydraulic tipping emptying of the basket,
  • Brush diameter 620 mm,
  • Operation via a pair of hydraulic outputs.
  • Drawbar floating function,
  • Bearing-mounted training wheels with a diameter of 250 mm,

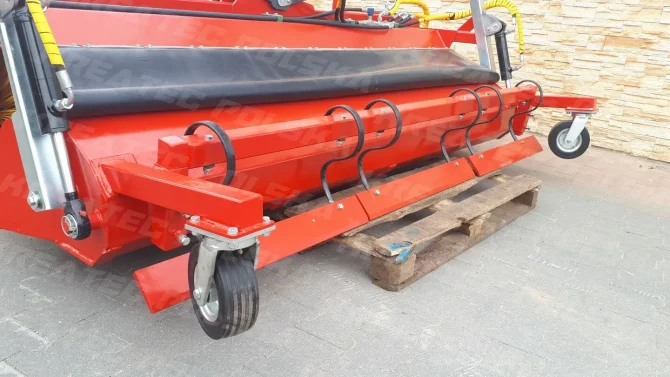

  • Rubber scraper strip on the basket,
  • Reinforced two-layer hoses with 330 bar,
  • Easy brush height adjustment,
  • Reinforced structural steel S355 construction,
  • Main brush made of PP material,
  • Powder coating
  • Snow removal function by locking the basket in the upper position
  • Euro mount
  • Euro hydraulic quick couplers

Optional Equipment:

  • Mounting bracket,

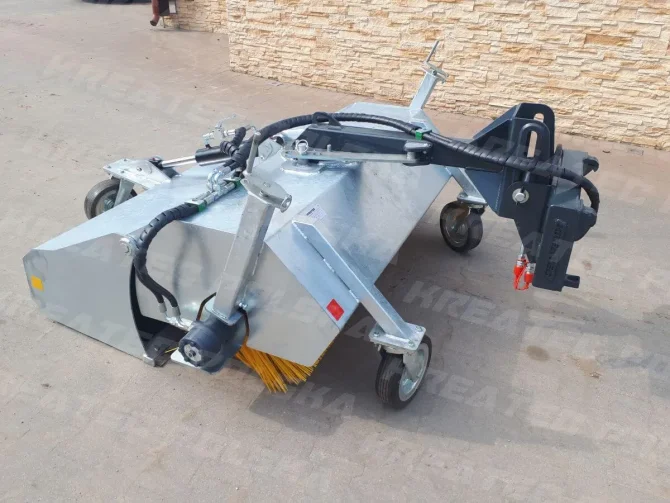

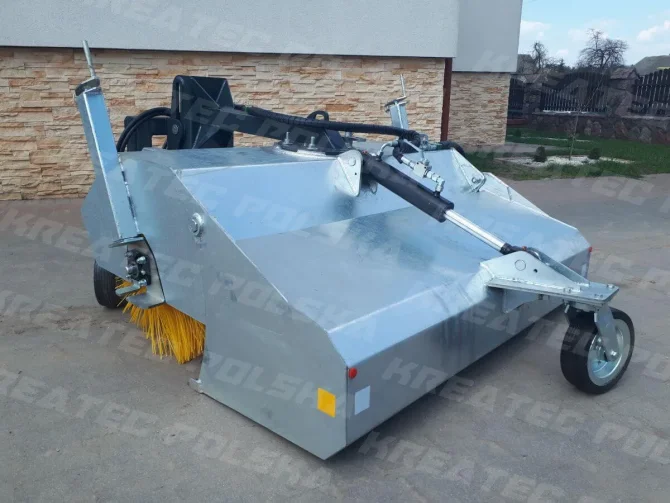

  • Galvanisation,

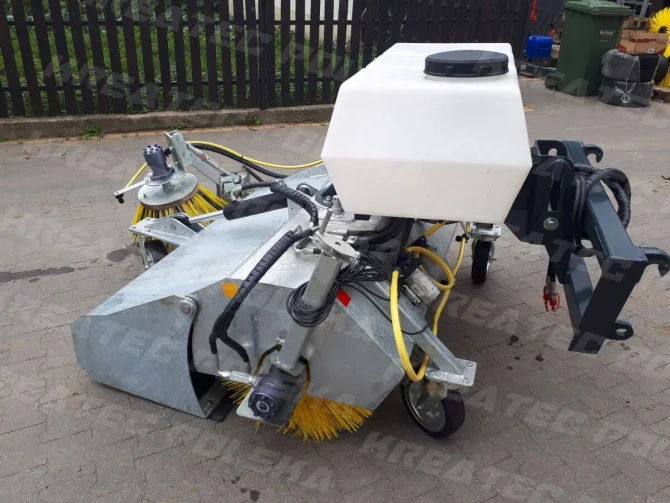

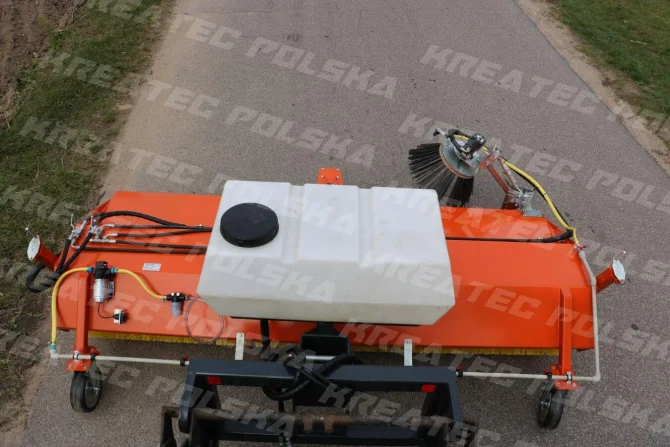

  • Water tank with irrigation system,
  • Hydraulic rotation with 3-way ball valve,
  • Hydraulic rotation with solenoid valve,

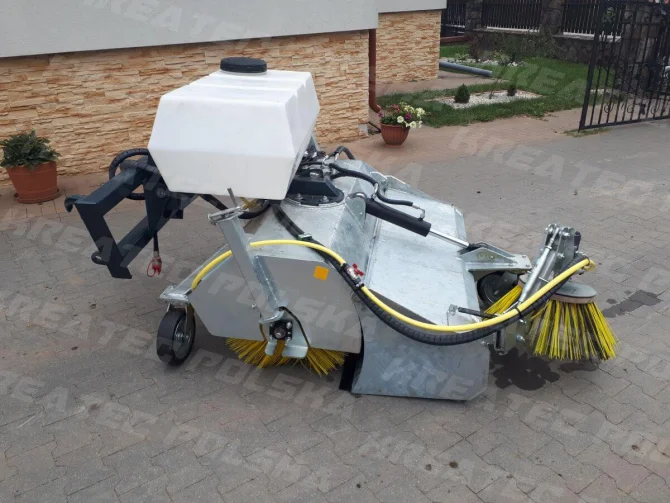

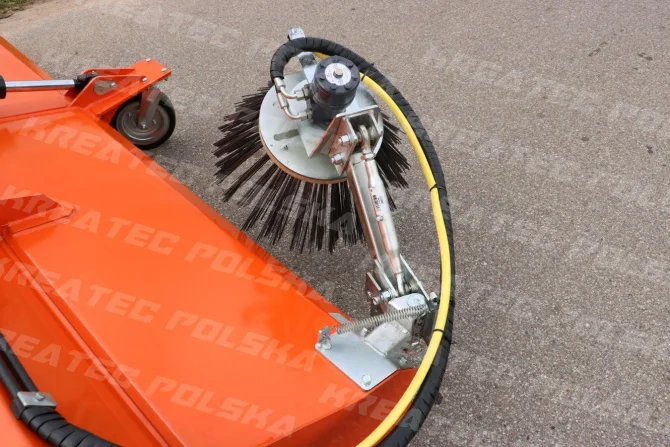

  • Side brush,
  • Without a basket,
  • Spare wheel,
  • LED lighting,
  • Three-way flow control valve
  • Slider instead of basket,
  • Fourth wheel with cylinder
  • Bolted mounting bracket.

Technical Specifications

INDEX WIDTH (M) BRUSH (MM) NUMBER OF WHEELS WEIGHT (KG)
KR-ZAM-1200 1,20 620 2 340
KR-ZAM-1600 1,60 620 2 400
KR-ZAM-1800 1,80 620 2 430
KR-ZAM-2000 2,00 620 2 460
KR-ZAM-2400 2,40 620 2 520
KR-ZAM-2600 2,60 620 2 550
KR-ZAM-2800 2,80 620 2 580
